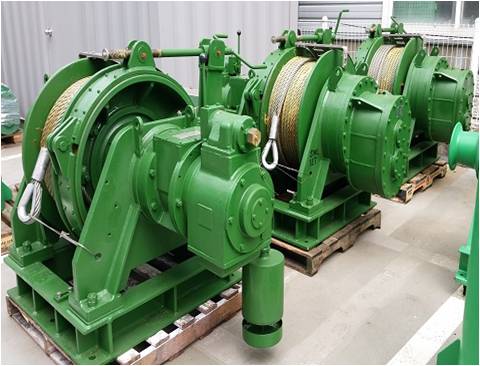

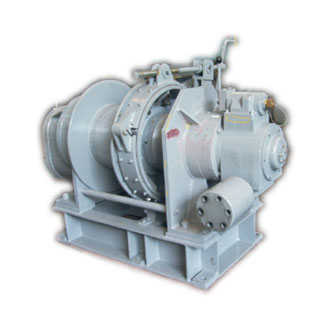

Air Winch

Contact us



Features

  • Pneumatic type winch with the mechanical braking system.
  • Great for use in dangerous and flammable gas areas, against high temperature and humidity.
  • In case of emergency, can be operated manually by the manual handle.
  • Much superior to the electric winch at the same capacity for its compact and light weight.
  • Easy to control speed at your will by only a lever.
  • No damage even if overheating occurs for overload and long operation without pause.
  • Additional winch seat can be made.

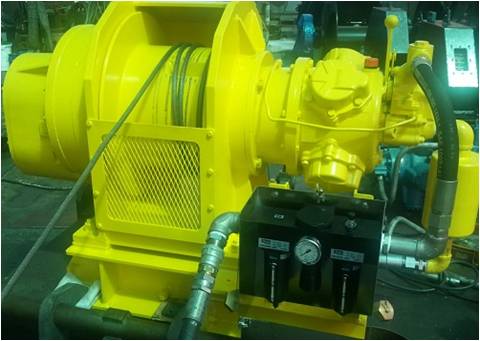

  • Air filter and lubricator can be installed.
  • Clutch can be installed.
  • Application

- Accommodation ladder winch

- Pilot slant ladder winch

- Hoisting winch

- Davit & crane winch

- Towing winch



Model

Safe Working Load

Rope Speed at 3-layer

Air Motor

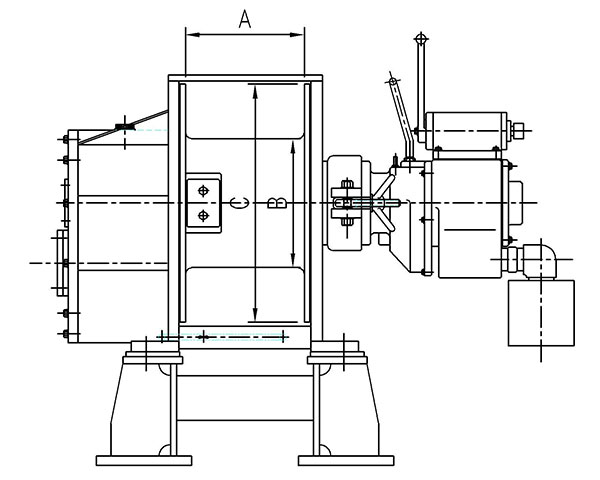

Drum Size

Drum Capacity

(kg)

(m/min)

A (mm)

B (Ø)

C (Ø)

Wire Rope (Ø)

Layer - Length (m)

SA2-0320

300

10

SAM-1.6VP/85

96

114

190

6.3

5 - 34

SA2-0515

500

12

SAM-2.5VP/60

144

165

300

10

5 - 47

SA2-0815

800

14

SAM-4.5VP/60

144

165

310

12

5 - 38

SA2-1020

1000

12

SAM-4.5VP/60

200

216

380

12

5 - 69

SA2-1320

1300

14

SAM-5.5VP/60

200

216

380

12

5 - 69

SA2-1520

1500

12

SAM-7.3VP/30

220

267

440

14

5 - 79

SA2-2010

2000

10

SAM-7.3VP/85

220

267

440

14

5 - 79

SA2-3010

3000

10

SAM-10VP/68

220

318

520

16

5 - 80

SA2-5020

5000

8

SAM-15VP/65

300

355

600

20

4 - 80

SA2-8020

8000

8

SAM-25VP/180

300

406

700

24

4 - 80

SA2-12005

12000

5

SAM-25VP/180

370

457

800

26

4 - 98
