Model

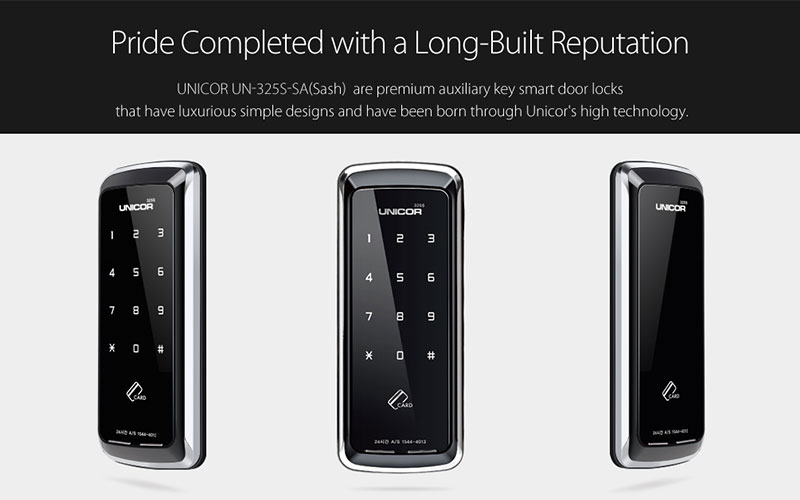

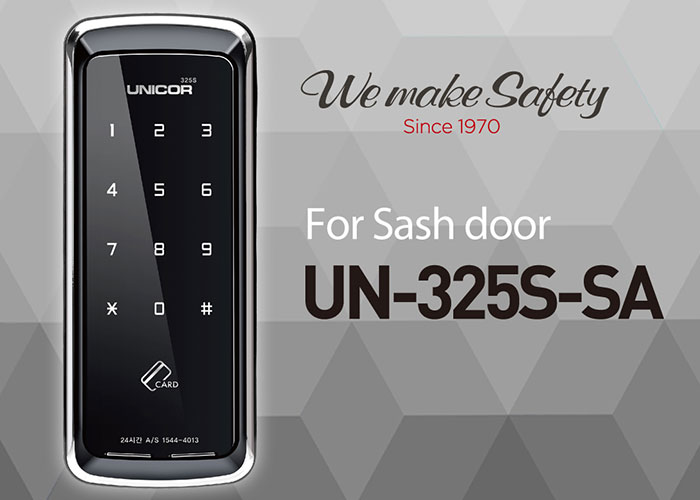

UN-325S-SA, Smart Digital Rim Lock

Usage

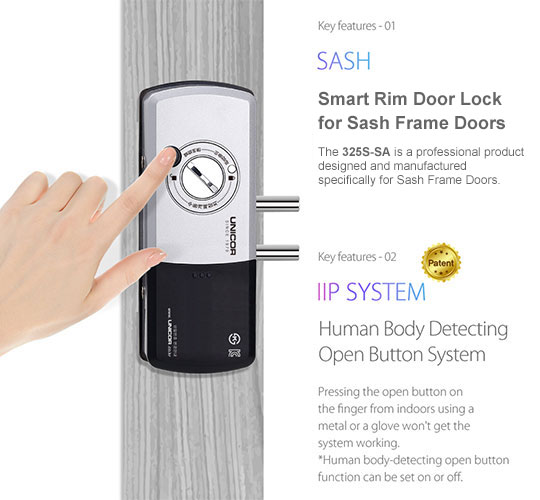

for Sash Frame Doors
  Frame Thickness: 40 ~ 50mm

Keys

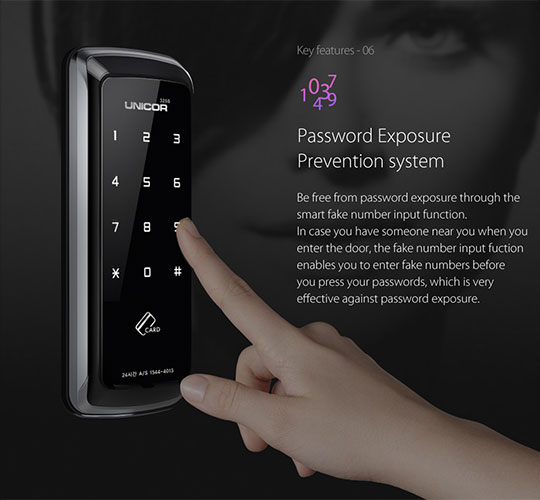

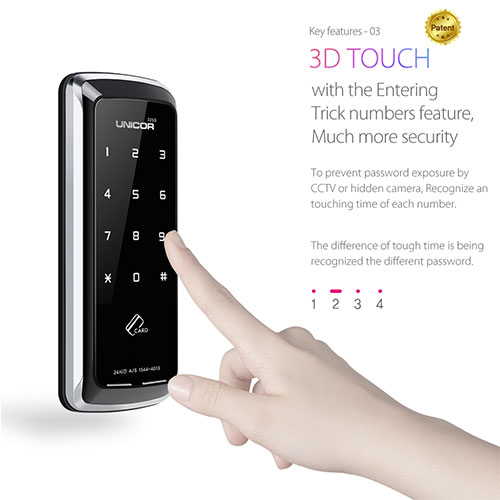

Touch Screen Key Pad:
   4 ~ 12 digits / 3 passwords

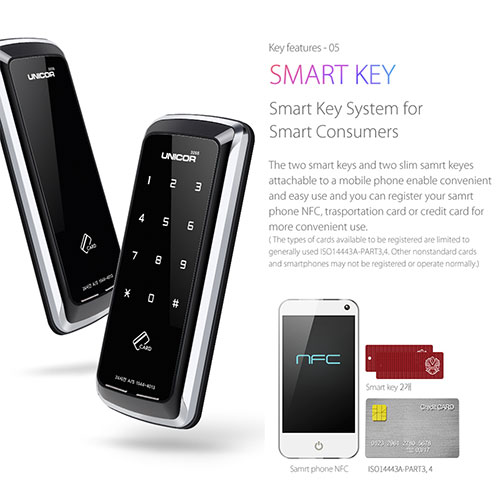

Smart Key:
   Max 100 keys can be registered

Dimensions

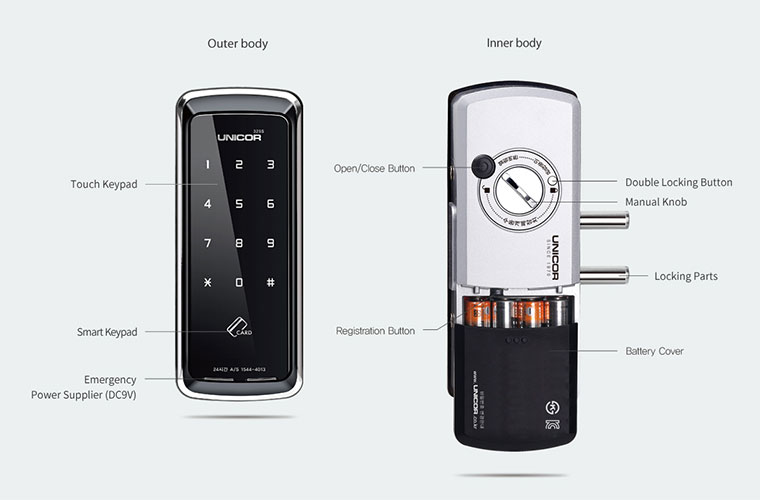

Outer: 71(W) x 175(H) x 35(D)mm

Inner: 71(W) x 180(H) x 18.5(D)mm

Power

DC 6V, LR6 AA Alkaline Batteries:
  1.5V x 4pcs

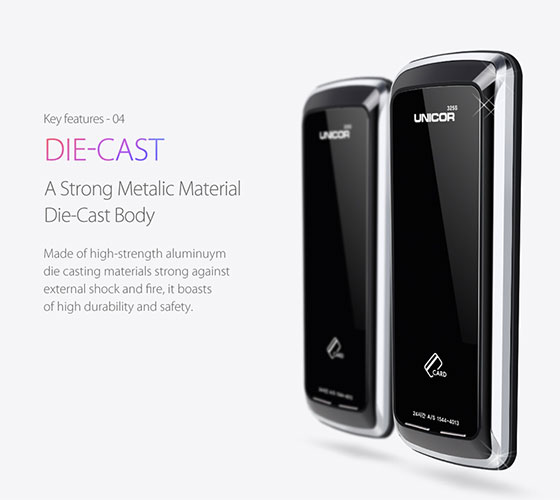

Body Material

Aluminum Alloy

Colors Available

Black & Chrome
