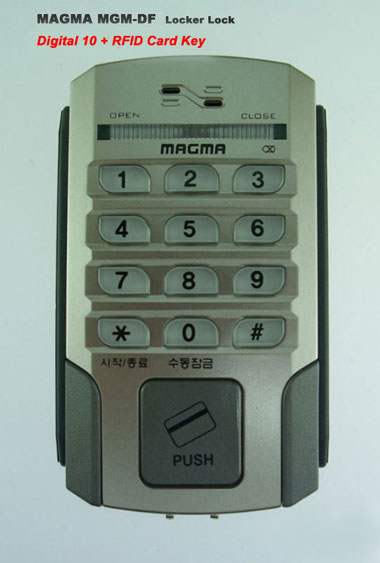

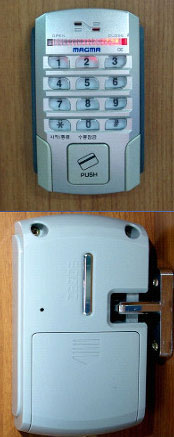

Features of MAGMA MGM-DF Digital Locker / Cabinet Lock

  • Enhanced security control
  • Enhanced guest privacy protection: Guest (locker user) can become aware if manager had opened the lock.
  • Various usage modes selectable: One time user, exclusive user, password operation and card key operation
  • Alarm sound in case of the forced unlocking other than registered password or card keys.
  • Distinct sounds on every different lock operation mode.
  • Prevention against theft or mischievous tries: Alarm sounds and unlocking function stops for 1 minute if wrong passwords or cards are tried to open over 5 times.
  • Battery-low warning: Warning lamp and sound.
  • External power inlet terminal in case that battery is dead.
  • Manual & automatic locking mode selectable.
  • Automatic relock function: Lock is relocked automatically if door is not opened in 3 seconds after lock is released.
  • Mountable for left or right-hinged doors.
  • Light-weighted and small-sized lock set have a barely effect on a possible drooping of the door.
  • Wear resistant 10-key button: Prevention against possible password leak caused by uneven wear of frequently used numbers.
  • Back lighting in 10-key button against a blackout.
  • Opening function without a damage in lock set in case of emergency that password is forgotten or all registered cards do not work at all.
  • Manner mode: Buzzer sound can be switched off if it is regarded as noises.



Specifications



Key Type

Digital 10 + RFID Card Key

Operating Mode

Lock / Unlock, Manual/Automatic

Type

- Individual Operating

- Cabinet Handle Type

     (No Separate Door handle required.)

Card Key

- Standard : RFID(125Khz) Card 2ea

- Total 8 Keys can be registered

10-Key Pad

   & Password

- Wear Resistant Acrylic Button

- Back Lighting

- 4 to 9 Digits

Locker Door

- Mountable for left or right-hinged doors

- Applicable Thickness : 15, 18, 20mm

Motor

Permanent Magnet Motor

Body Material

Outer & Inner : PC & ABS

Finish

Metallic Paint

Power Supply

Alkaline AA Batteries, 1.5V x 4ea

Battery Life

12 Months (Approximately)

Dimensions

- Outer : W55 x H100 x D18mm

- Inner : W70 x H145 x D27mm

Mounting

Surface Mounting
