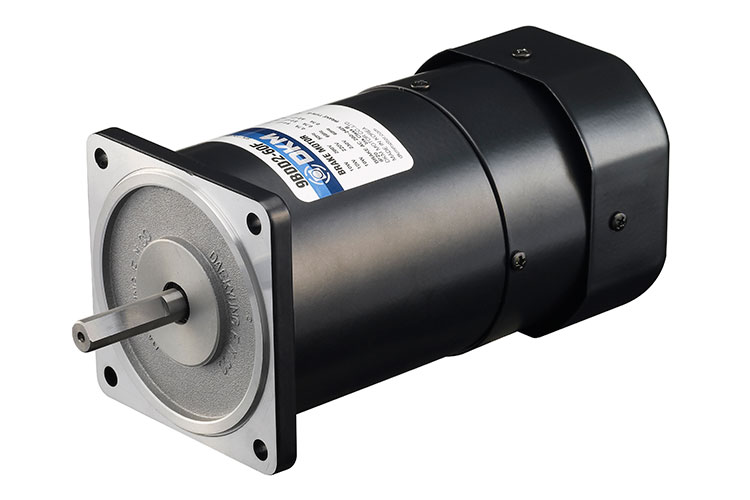

9BDG5 DKM Brake Motor

Motor

Electromagnetic Brake Motor

Frame size

□90mm square / 3.54inch square

Output shaft type

Gear type (Pinion shaft for Gear reducer mounting)

Phase & Voltage

3-phase, AC 415V ~ 440V, 50/60Hz

Model

Gear Reducer

Output

Voltage
(V)

Freq.
(Hz)

Starting Torque

Rated Torque

Rated Current
(A)

Rated Speed
(r/min)

kgfcm

N.m

kgfcm

N.m

9BDG5-40G

9BDG5-40W

General Box type

Worm Gear with Solid Output Shaft

40W

415

50

10.0

1.00

2.89

0.289

0.17

1350

60

8.0

0.80

2.44

0.244

0.19

1600

440

50

11.1

1.11

2.89

0.289

0.18

1350

60

8.9

0.89

2.44

0.244

0.17

1600

Model

Cooling

Gear Reducer

Output

Voltage
(V)

Freq.
(Hz)

Starting Torque

Rated Torque

Rated Current
(A)

Rated Speed
(r/min)

kgfcm

N.m

kgfcm

N.m

9BDG5-60FH

9BDG5-60FP

9BDG5-60FW

9BDG5-60FWH

Fan Cooled

High Powerful Flanged Box type

Powerful Flanged  Box type

Worm Gear with  Solid Output Shaft

Worm Gear with  Hollow Output Shaft

60W

415

50

16.7

1.67

4.33

0.433

0.29

1350

60

13.4

1.34

3.65

0.365

0.26

1600

440

50

18.5

1.85

4.33

0.433

0.31

1350

60

15.0

1.50

3.65

0.365

0.28

1500

Model

Cooling

Gear Reducer

Output

Voltage
(V)

Freq.
(Hz)

Starting Torque

Rated Torque

Rated Current
(A)

Rated Speed
(r/min)

kgfcm

N.m

kgfcm

N.m

9BDG5-90FP

9BDG5-90FW

9BDG5-90FWH

Fan Cooled

Powerful Flanged  Box type

Worm Gear with Solid Output Shaft

Worm Gear with  Hollow Output Shaft

90W

415

50

20.5

2.05

6.49

0.649

0.33

1350

60

16.2

1.62

5.48

0.548

0.35

1600

440

50

22.7

2.27

6.49

0.649

0.36

1350

60

18.1

1.81

5.48

0.548

0.33

1600

Model

Cooling

Gear Reducer

Output

Voltage
(V)

Freq.
(Hz)

Starting Torque

Rated Torque

Rated Current
(A)

Rated Speed
(r/min)

kgfcm

N.m

kgfcm

N.m

9BDG5-120FH

9BDG5-120FP

9BDG5-120FW

9BDG5-120FWH

Fan Cooled

High Powerful Flanged Box type

Powerful Flanged  Box type

Worm Gear with Solid Output Shaft

Worm Gear with  Hollow Output Shaft

120W

415

50

24.3

2.43

8.99

0.899

0.47

1300

60

19.9

1.99

7.31

0.731

0.37

1600

440

50

27.5

2.75

8.66

0.866

0.47

1350

60

22.2

2.22

7.31

0.731

0.4

1600

Model

Cooling

Gear Reducer

Output

Voltage
(V)

Freq.
(Hz)

Starting Torque

Rated Torque

Rated Current
(A)

Rated Speed
(r/min)

kgfcm

N.m

kgfcm

N.m

9BDG5-150FH

9BDG5-150FWH

Fan Cooled

High Powerful Flanged Box type

Worm Gear with  Hollow Output Shaft

150W

415

50

25.0

2.50

11.24

1.124

0.51

1300

60

22.1

2.21

9.43

0.943

0.45

1550

440

50

27.2

2.72

11.24

1.124

0.55

1300

60

22.4

2.24

9.43

0.943

0.48

1550
