MG-V105 MAX Vertical Geared Motor

MG-V105 MAX Vertical Geared Motors

Home

MAX Geared Motors

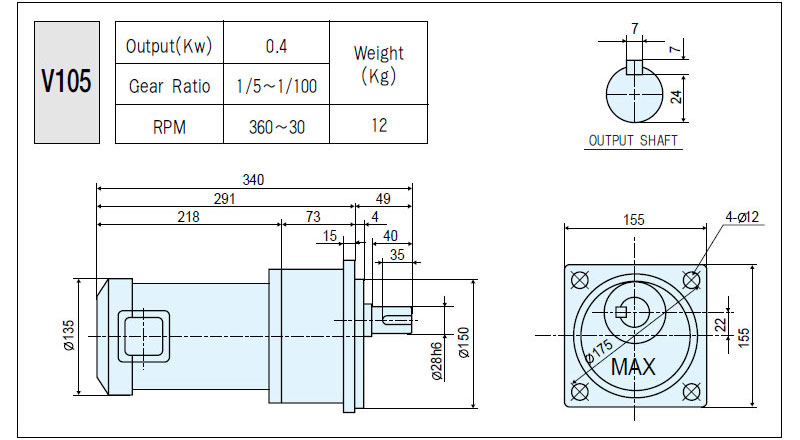

MG-V105 Vertical 0.4KW (1/2HP) 3-phase

See Horizontal type of This Geared Motor

Motor	Gear Ratio	RPM
Motor	Gear Ratio	60Hz, 4p 1800rpm	50Hz, 4p 1500rpm
0.4KW (1/2HP) Three Phase)	1/5	360	300
	1/10	180	150
	1/15	120	100
	1/20	90	75
	1/30	60	50
	1/40	45	37.5
	1/50	36	30
	1/60	30	25
	1/75	24	20
	1/90	20	16.7
	1/100	18	15
MG-V105C 0.4KW (1/2HP) Three Phase	1/120	15	12.5
	1/150	12	10
	1/180	10	8.33
	1/200	9	7.5
	1/300	6	5
	1/400	4.5	3.75
	1/500	3.6	3
	1/600	3	2.5
	1/900	2	1.67
