MAX Geared Motor

- Small and mid-sized helical geared motor

- Size : 88, 105, 135, 153, 172, 181, 205, 235, 270mm, height to the CL of output shaft

- Power : 0.2 ~ 15KW (1/4 ~ 20HP), 1 & 3-phase

- Reduction ratio : 1/5 ~ 1/600

- Mounting : horizontal, vertical or in-line reducer

- Gear head with flange fit for IEC standard motor available

- Compact size, light weight and low noise level by advanced optimal gear design

- High precision, efficiency and reliability by grinding and gear-shaving

- Strong and durable gear by carburizing suitable for AGMA standard

- Standardization of all parts and modular system of major components

- Accumulated know-how and quality from the experience of over 40 years in this field



Home

MAX Horizontal Geared Motor

MAX Vertical Geared Motor

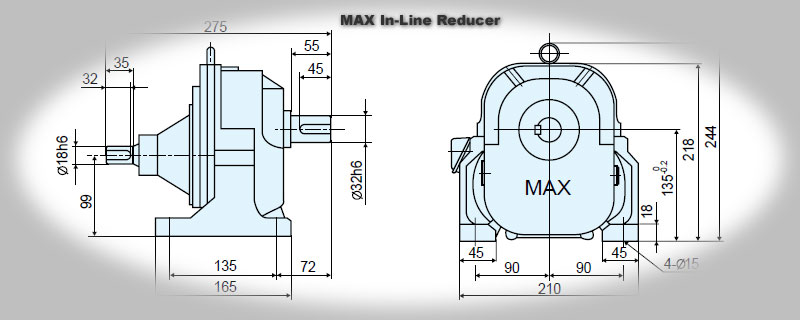

MAX In-Line Gear  Reducer

Contact us

Model

Output(KW)

Gear Ratio

MG-L88

0.2

1/5 ~ 1/100

MG-L105

0.4

1/5 ~ 1/100

MG-L115

0.4

1/5 ~ 1/60

MG-L135

0.75

 1/10 ~  1/30

MG-L153

0.75

1/40 ~ 1/120

1.5

 1/10 ~  1/30

MG-L172

1.5

1/40 ~ 1/60

2.2

 1/10 ~  1/30

3.7

 1/10 ~  1/20

MG-L181

2.2

1/40 ~ 1/50

3.7

 1/30

5.5

 1/10 ~  1/20

7.5

 1/10

MG-L205

1.5

1/90

2.2

1/60

3.7

1/40 ~ 1/50

5.5

 1/30

7.5

 1/15 ~  1/20

MG-L235

1.5

1/120

2.2

1/90

3.7

1/60

5.5

1/40 ~ 1/50

7.5

 1/30

MG-L270

2.2

1/120

3.7

1/90

5.5

1/60

7.5

1/40 ~ 1/50
