Features

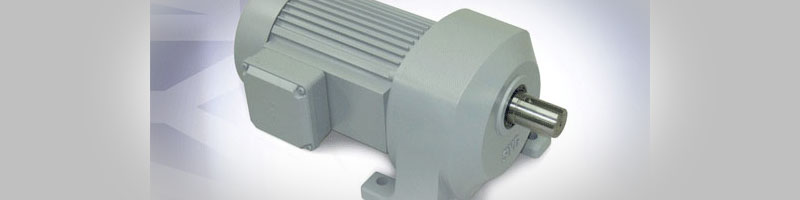

MAX II series

- Small and mid-sized helical geared motor

- Size : 88, 105, 135, 153, 172mm, height to the CL of output shaft

- Power : 0.2 ~ 3.7KW (1/4 ~ 5HP), 1 & 3-phase

- Reduction ratio : 1/5 ~ 1/200 in a single case

- Mounting : horizontal, vertical or in-line reducer

- Gear head with flange fit for IEC standard motor available

- Compact size, light weight and low noise level by advanced optimal gear design

- High precision, efficiency and reliability by grinding and gear-shaving

- Strong and durable gear by carburizing suitable for AGMA standard

- Standardization of all parts and modular system of major components

- Accumulated know-how and quality from the experience of over 40 years in this field

Home

MAX II Geared Motor

Contact us

Model

Electricity Phase

Motor Power

Gear Ratio

M2088



M2088 IEC Frame Gearhead

Three Phase

0.2KW (1/4HP)

1/5 ~1/200

0.4KW (1/2HP)

1/5 ~1/30

Single Phase

0.2KW (1/4HP)

1/5 ~1/200

0.4KW (1/2HP)

1/5 ~1/30

M2105



M2105 IEC Frame Gearhead

Three Phase

0.2KW (1/4HP)

1/90 ~ 1/200

0.4KW (1/2HP)

1/40 ~ 1/75

0.75KW (1HP)

1/5 ~1/30

Single Phase

0.2KW (1/4HP)

1/90 ~ 1/200

0.4KW (1/2HP)

1/40 ~ 1/75

0.75KW (1HP)

1/5 ~1/30

M2135



M2135 IEC Frame Gearhead

Three Phase

0.4KW (1/2HP)

1/90 ~ 1/200

0.75KW (1HP)

1/40 ~ 1/75

1.5KW (2HP)

1/5 ~1/30

Single Phase

0.4KW (1/2HP)

1/90 ~ 1/200

0.75KW (1HP)

1/40 ~ 1/75

1.5KW (2HP)

1/5 ~1/30

M2153



M2153 IEC Frame Gearhead

Three Phase

0.75KW (1HP)

1/90 ~ 1/200

1.5KW (2HP)

1/40 ~ 1/75

2.2KW (3HP)

1/5 ~1/30

Single Phase

0.75KW (1HP)

1/90 ~ 1/200

1.5KW (2HP)

1/40 ~ 1/75

M2172



M2172 IEC Frame Gearhead

Three Phase

1.5KW (2HP)

1/90 ~ 1/200

2.2KW (3HP)

1/40 ~ 1/75

3.7KW (5HP)

1/5 ~1/30

Single Phase

1.5KW (2HP)

1/90 ~ 1/200
