Features

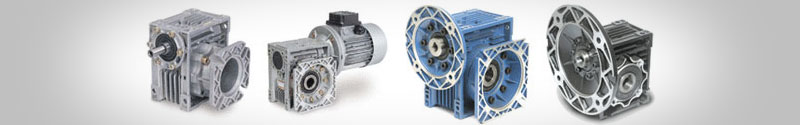

MTW series

- Small and mid-sized worm gear reducer

- Size : CD 25, 30, 40, 50, 63, 75, 100, 120, 135, 155mm

- Reduction ratio : 1/10 ~ 1/60

- Power Transmission : 40W ~ 7.5KW (1/8 ~ 10HP)

- Aluminum diecasting case(Up to size CD 75mm)

- Mounting : universal - horizontal (front, rear, left, right) and vertical (upper & lower)

- Hollow output shaft and flange at output side

- Flange fit for IEC standard motor attaching available

- Reducer with motor attached available

- Compact size, light weight and low noise level by advanced optimal gear design

- High precision, efficiency and reliability by profile grinding

- Standardization of all parts and modular system of major components

- Accumulated know-how and quality from the experience of over 40 years in this field

Home

Mighty Worm Reducer with Hollow Output Shaft

>>> more info

Contact us

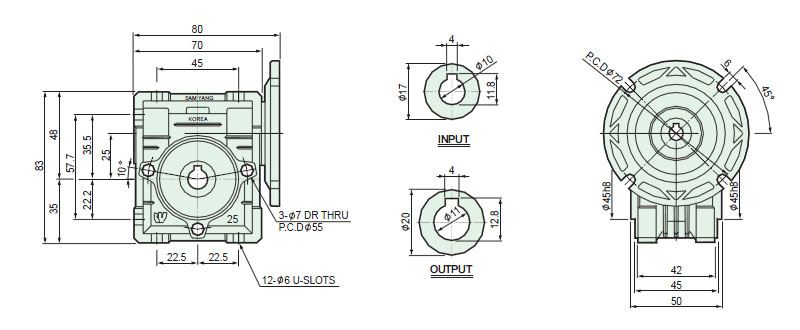

MTW-25 with Hollow Output Shaft

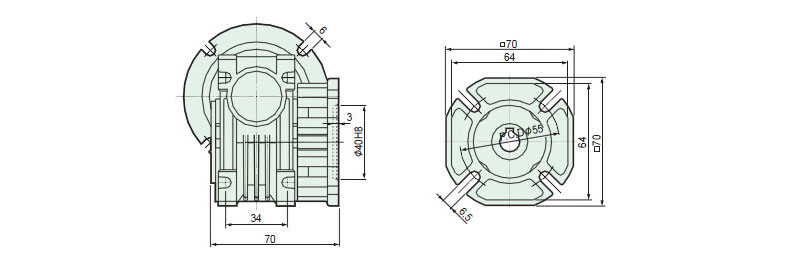

MTW-25F with Flange at Output Side

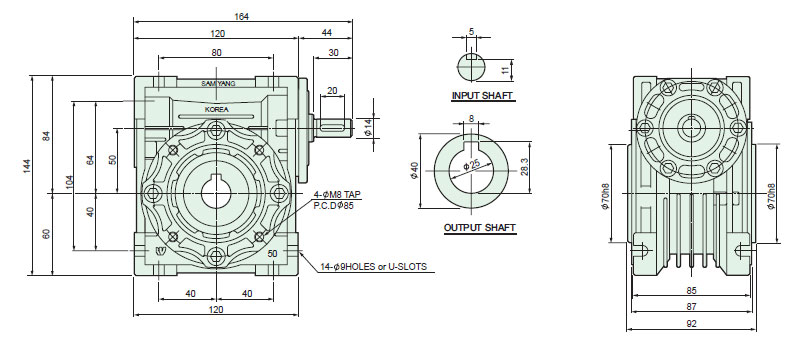

MTW-50 with Hollow Output Shaft

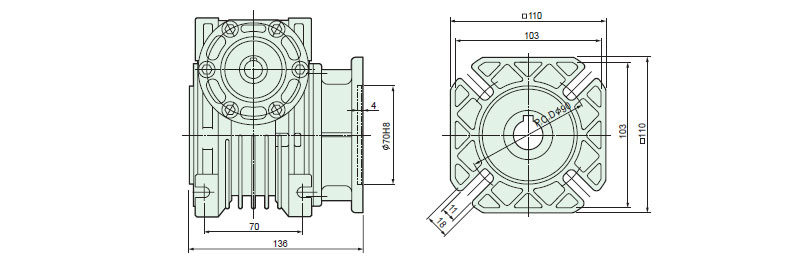

MTW-50F with Flange at Output Side

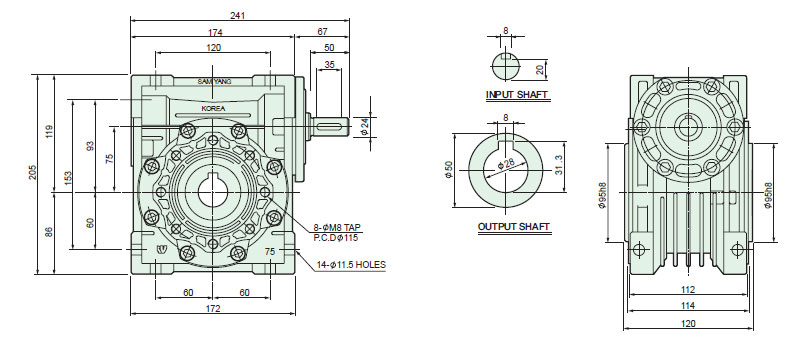

MTW-75 with Hollow Output Shaft

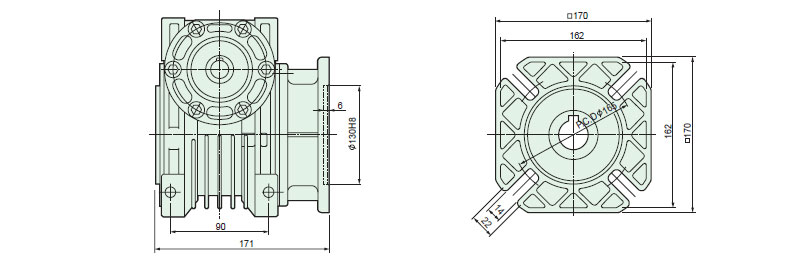

MTW-75F with Flange at Output Side



MTW-100 with Hollow Output Shaft

MTW-100F with Flange at Output Side



MTW-120 with Hollow Output Shaft

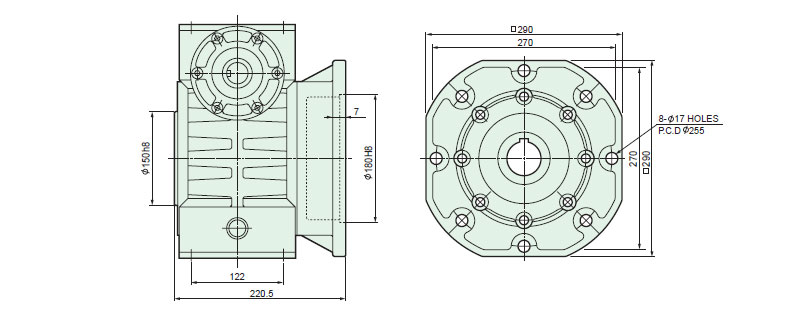

MTW-120F with Flange at Output Side

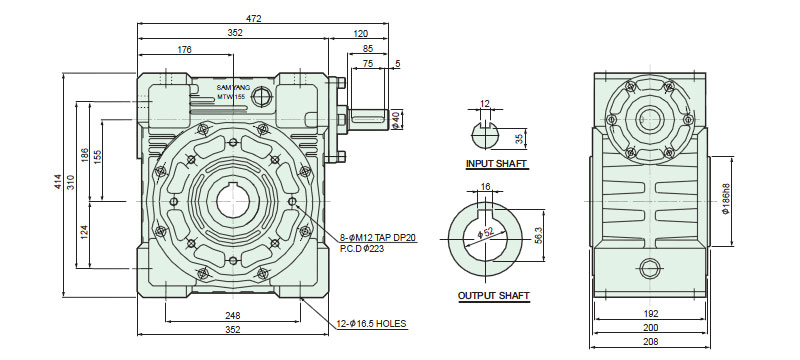

MTW-155 with Hollow Output Shaft

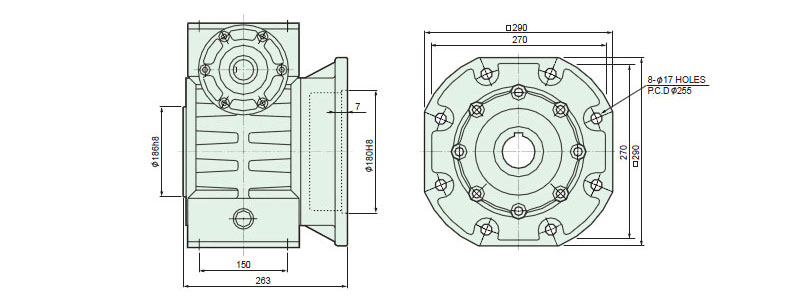

MTW-155F with Flange at Output Side
