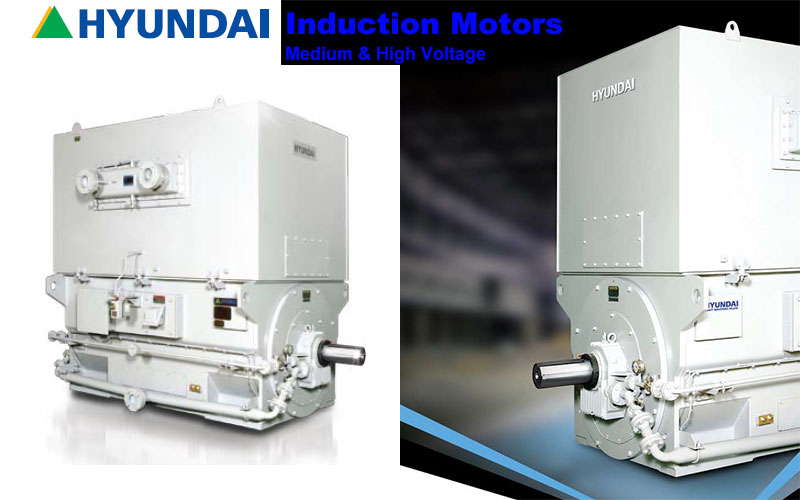

HRN3 / HIN1 Series
Totally Enclosed Water to Air Cooled, Squirrel
Cage
|
|
|
HRN3 / HIN1 Type-I (Uni-directional
cooling circuit)
|
Rotor Type
|
Squirrel Cage
|
|
Number of Poles
|
2-16
|
|
Voltage
|
2-14 kV
|
|
Output Range
|
1,130-13,800 kW (at
60 Hz, 6,600 V, 4 Pole)
|
|
Type of Construction
|
IM B3
|
|
Frame
|
400-710
|
|
Degree of Protection
|
IP 55 (IEC 60034-5)
|
|
Method of Cooling
|
IC 81W (IEC 60034-6)
|
|
Type of Enclosure
|
Totally Enclosed Water
to Air Cooled (NEMA MG-1)
|
|
Cooling Water Inlet
Temp.
|
Max. 25 °C
|
Power Capacity Table, HRN3 2P
Series
HRN3 (60Hz, Unit:
kW)
|
HRN3 (50Hz, Unit:
kW)
|
|
Type
|
2-Pole
|
|
3.3kV
|
6.6kV
|
|
HRN3
|
403
|
1,490
|
1,300
|
|
HRN3
|
405
|
1,680
|
1,490
|
|
HRN3
|
407
|
1,865
|
1,680
|
|
HRN3
|
451
|
2,200
|
2,040
|
|
HRN3
|
453
|
2,390
|
2,210
|
|
HRN3
|
455
|
2,650
|
2,450
|
|
HRN3
|
501
|
3,030
|
2,960
|
|
HRN3
|
503
|
3,280
|
3,200
|
|
HRN3
|
505
|
3,840
|
3,750
|
|
HRN3
|
561
|
4,620
|
4,300
|
|
HRN3
|
563
|
5,100
|
4,750
|
|
HRN3
|
565
|
5,800
|
5,400
|
|
HRN3
|
631
|
6,540
|
6,020
|
|
HRN3
|
633
|
7,320
|
6,740
|
|
HRN3
|
635
|
7,700
|
7,350
|
|
HRN3
|
711
|
8,560
|
8,000
|
|
HRN3
|
713
|
9,580
|
8,950
|
|
HRN3
|
715
|
10,710
|
10,000
|
|
|
Type
|
2-Pole
|
|
3.3kV
|
6.6kV
|
|
HRN3
|
403
|
1,300
|
1,120
|
|
HRN3
|
405
|
1,490
|
1,300
|
|
HRN3
|
407
|
1,570
|
1,490
|
|
HRN3
|
451
|
1,830
|
1,700
|
|
HRN3
|
453
|
1,980
|
1,850
|
|
HRN3
|
455
|
2,200
|
2,050
|
|
HRN3
|
501
|
2,480
|
2,360
|
|
HRN3
|
503
|
2,690
|
2,560
|
|
HRN3
|
505
|
3,150
|
3,000
|
|
HRN3
|
561
|
3,820
|
3,660
|
|
HRN3
|
563
|
4,220
|
4,050
|
|
HRN3
|
565
|
4,800
|
4,600
|
|
HRN3
|
631
|
5,660
|
5,420
|
|
HRN3
|
633
|
6,340
|
6,070
|
|
HRN3
|
635
|
6,900
|
6,600
|
|
HRN3
|
711
|
7,180
|
6,840
|
|
HRN3
|
713
|
8,050
|
7,670
|
|
HRN3
|
715
|
9,030
|
8,600
|
|
|
|
