11KW
/ 15HP 4-pole TEFC
Induction Motor, Foot Mount
|
|
|
|

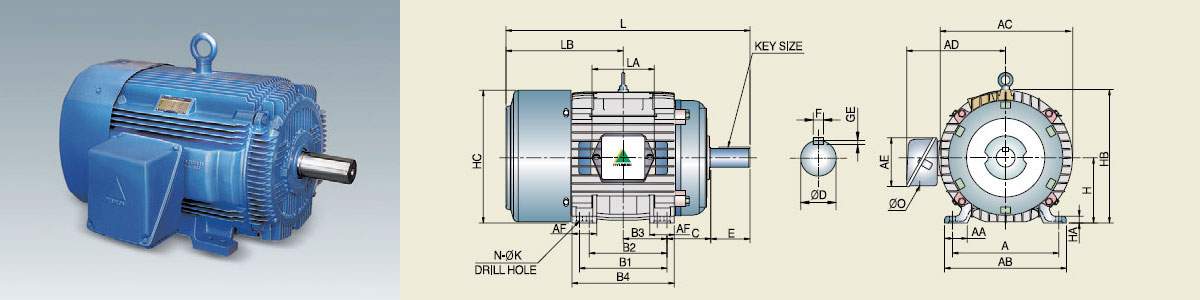

Dimensions
(mm) |
Net Weight |
|
Mounting |
Shaft |
Overall |
|
A |
B1 |
B2 |
H |
D |
E |
AB |
AC |
AD |
HB |
HC |
L |
|
254
|
210
|
- |
160
|
42
|
110
|
285
|
324
|
300
|
325
|
322
|
596
|
117Kg
|
|
|
General
Specifications |
|
Rated
Power |
11KW
/ 15HP
|
Enclosure & Cooling |
TEFC
(Totally Enclosed, Fan-Cooled), IP54
|
|
Pole
|
4-pole
|
Efficiency |
High
(IE2), Premium (IE3) |
|
Frame
|
160M |
Duty |
Continuous
(S1) |
|
Mount |
Foot Mount
- Horizontal (B3) |
Insulation Class |
F |
|
Phase |
3 |
Service Factor |
1.15 |
|
Rated Voltage |
220,
380, 400, 440, 220/380, 220/440, 415, 460V
|
Ambient
Temperature |
-20°C
~ +40°C |
|
Frequency |
50,
60Hz |
Option |
Explosion Proof
(Ex e II T3) |
|
|
