22KW / 30HP 4-pole TEFC Induction Motor, Foot Mounted

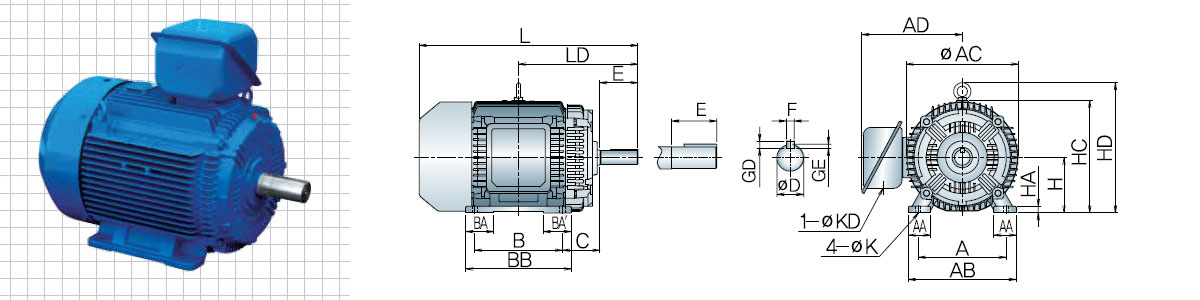

Dimensions (mm)

Net Weight

Mounting

Shaft

Overall

A

B

H

D

E

AB

AC

AD

HC

HD

L

279

241

180

48

110

338

360

315

363

415

680

223Kg

General Specifications

Rated Power

22KW / 30HP

Enclosure & Cooling

TEFC (Totally Enclosed, Fan-Cooled), IP54

Pole

4-pole

Efficiency

High (IE2),  Premium (IE3)

Frame

180M

Duty

Continuous (S1)

Mount

Foot Mounted - Horizontal (B3)

Insulation Class

F

Phase

3

Service Factor

1.15

Rated Voltage

220, 380, 400, 440, 220/380, 220/440, 415, 460V

Ambient Temperature

-20°C ~ +40°C

Frequency

50, 60Hz

Option

Explosion Proof (Ex e II T3)
