| 45KW
/ 60HP 6-pole 50Hz TEFC
Induction Motor, Foot Mounted
|
60Hz
|
|
|
|
|

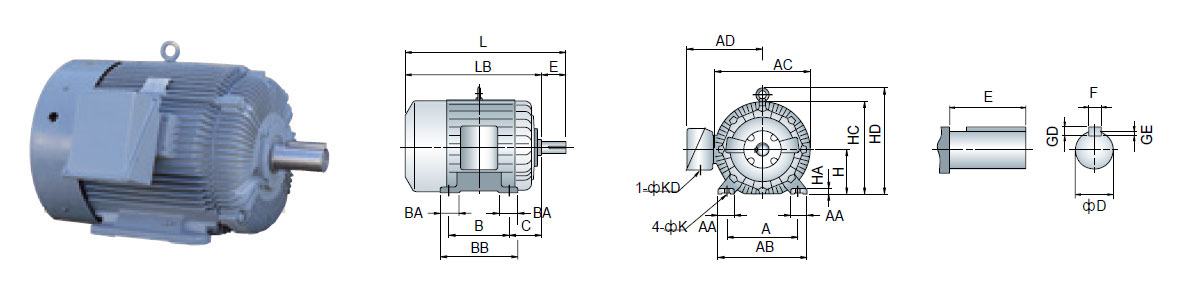

Dimensions
(mm) |
Net Weight |
|
Mounting |
Shaft |
Overall |
|
A |
B |
H |
D |
E |
AB |
AC |
AD |
HC |
HD |
L |
|
406
|
311
|
250
|
75
|
140
|
485
|
529
|
428
|
515
|
586
|
846
|
522Kg
|
|
|
General
Specifications |
|
Rated
Power |
45KW
/ 60HP
|
Enclosure & Cooling |
TEFC
(Totally Enclosed, Fan-Cooled), IP55
|
|
Pole
|
6-pole
|
Efficiency |
High
(IE2), Premium (IE3) |
|
Frame
|
250S |
Duty |
Continuous
(S1) |
|
Mount |
Foot Mounted
- Horizontal (B3) |
Insulation Class |
F |
|
Phase |
3 |
Service Factor |
1.15 |
|
Rated Voltage |
220,
380, 400, 440, 220/380, 220/440, 415, 460V
|
Ambient
Temperature |
-20°C
~ +40°C |
|
Frequency |
|
Option |
Explosion Proof
(Ex e II T3) |
|
|
