55KW / 75HP 4-pole 60Hz TEFC Induction Motor, Foot Mounted

50Hz

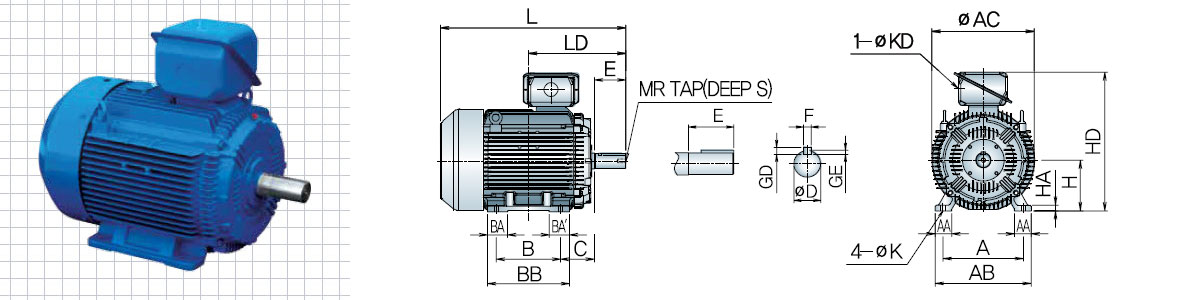

Dimensions (mm)

Net Weight

Mounting

Shaft

Overall

A

B

H

D

E

AB

AC

AD

HC

HD

L

356

286

225

65

140

426

457

-

-

620

825

390Kg

General Specifications

Rated Power

55KW / 75HP

Enclosure & Cooling

TEFC (Totally Enclosed, Fan-Cooled), IP55

Pole

4-pole

Efficiency

High (IE2),  Premium (IE3)

Frame

225S

Duty

Continuous (S1)

Mount

Foot Mounted - Horizontal (B3)

Insulation Class

F

Phase

3

Service Factor

1.15

Rated Voltage

220, 380, 400, 440, 220/380, 220/440, 415, 460V

Ambient Temperature

-20°C ~ +40°C

Frequency

60Hz

50Hz

Option

Explosion Proof (Ex e II T3)
