132KW / 175HP 6-pole 50Hz TEFC Induction Motor, Foot Mounted

60Hz

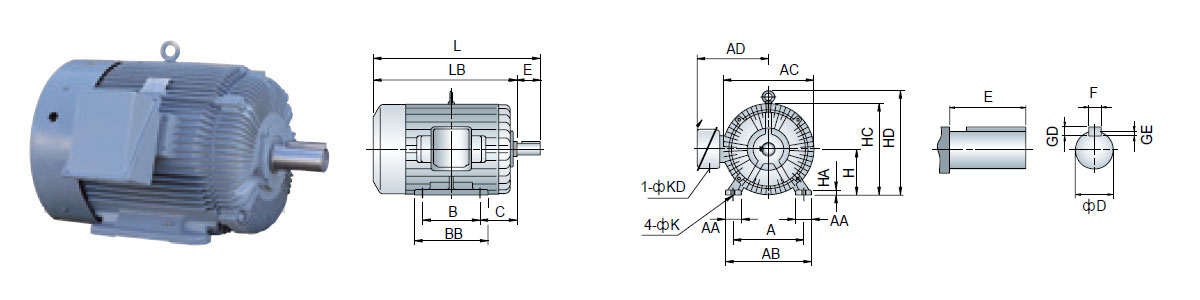

Dimensions (mm)

Net Weight

Mounting

Shaft

Overall

A

B

H

D

E

AB

AC

AD

HC

HD

L

457

635

280

95

170

546

610

510

585

656

1281

1280Kg

General Specifications

Rated Power

132KW / 175HP

Enclosure & Cooling

TEFC (Totally Enclosed, Fan-Cooled), IP55

Pole

6-pole

Efficiency

High (IE2),  Premium (IE3)

Frame

280LL

Duty

Continuous (S1)

Mount

Foot Mounted - Horizontal (B3)

Insulation Class

F

Phase

3

Service Factor

1.15

Rated Voltage

220, 380, 400, 440, 220/380, 220/440, 415, 460V

Ambient Temperature

-20°C ~ +40°C

Frequency

50Hz

60Hz

Option

Explosion Proof (Ex e II T3)
