LED Indicator Light

General Specifications

Rating

1.5W MAX

Withstand Voltage

AC 2000V

Insulation Resistance

DC 500V, 100MΩ

Bulb Holder

BA9S

Insulation Material

Phenol Resin

Housing Material

Acryl Resin

Color Availability

Red, Green, Yellow & Transparent



TL-16F

TL-16R

TL-16D

TL-18F

TL-18R

TL-18D

TL-20D

TLS-18F

TLS-18R

TLS-18D

TLS-20F

TLS-20D

Bulb

Contact us



LED Bulb for Indicator Light

Features

    - High brightness, Long life, Low current consumption and High reliability

    - 8-chip Non-polarity is convenient to work with both DC and AC

    - Color availability: Red, Yellow, Green and White



Ordering Information

DC

P -

24 -

R

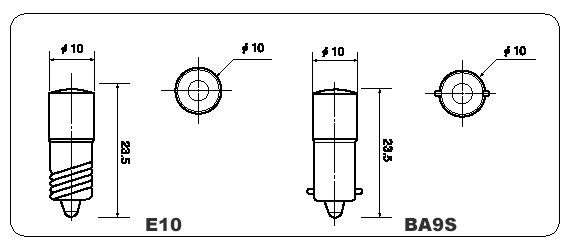

Bulb Base

Rated Voltage

Color



P: BA9S

06: 6.3V

R: Red



S: E10

12: 12V

G: Green





24: 24V

Y: Yellow





48: 48V

W: White





110: 110V







220: 220V





LED Indicator Light
