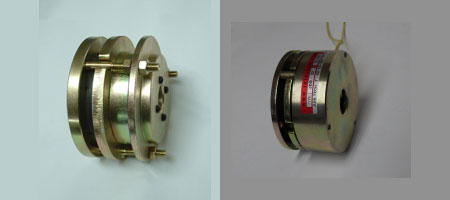

DC Magnetic
Disc Brake (B-type)
|
|
|
| Model
(DC
B-type) |
Applicable
Motor (Rated Capacity) |
Voltage
(DC V) |
Torque
(kgf.m) |
Outer
Diameter
(mm) |
Shaft
Diameter
(mm) |
|
HP |
Kw |
Dynamic |
Static |
|
JDB-0.1 |
1/10 |
0.1 |
90, 24 |
0.1 |
0.1 |
49 |
8, 10 |
|
JDB-0.1 |
1/8 |
0.1 |
90, 24 |
0.1 |
0.1 |
57 |
8, 10 |
|
JDB-0.2 |
1/4 |
0.2 |
90, 24 |
0.3 |
0.4 |
64 |
8, 10 |
|
JDB-0.5 |
1/2 |
0.4 |
90, 24 |
0.4 |
0.5 |
90 |
14 |
|
JDB-1 |
1 |
0.75 |
190, 90, 24 |
0.8 |
1 |
120 |
16 |
|
JDB-2 |
2 |
1.5 |
190, 90, 24 |
2.8 |
3 |
135 |
19 |
|
JDB-3 |
3 |
2.2 |
190, 90, 24 |
5 |
6 |
150 |
24 |
|
JDB-5 |
5 |
3.8 |
190, 90, 24 |
7 |
8 |
175 |
24 |
|
JDB-7 |
7.5 |
5.7 |
190, 90, 24 |
10 |
11 |
175 |
29 |
|
JDB-10 |
10 |
7.5 |
190, 90, 24 |
14 |
15 |
200 |
29 |
|
JDB-15 |
15 |
12 |
190, 90, 24 |
20 |
22 |
220 |
34 |
|
JDB-20 |
20 |
15 |
190, 90, 24 |
27 |
30 |
220 |
34 |
|
|
|
