SV-iP5A has been specifically designed and created
to provide competitive solutions for fan and pump
Functions for Fan and Pump
specifically designed for HVAC application, provides stable and
cost-effective system performance.

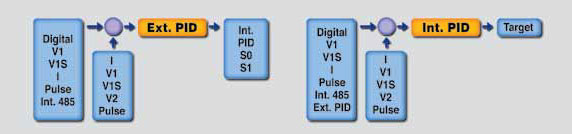

external or cascaded PID control is required,
the built-in dual PID algorithm of the iP5A
can be utilized to satisfy various system

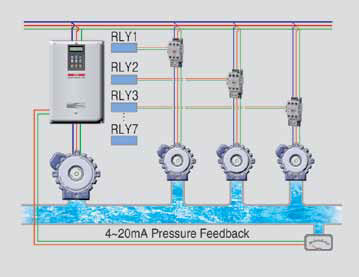

Multi Motor Control (0.75~450kW)
iP5A MMC function provides cost-effective,
simultaneous control of up to eight motors,
without requiring external controllers.
Saving and High Efficiency
specifically designed for fan and pump applications, guarantees energy
savings by optimizing the system.
Sleep and Wake-up Function
Pre Heating Function
using the drive in damp conditions, this
function protects both the motor and the
Flying Start Function
Automatic Energy Saving
change may incur energy losses but the optimized
flux control of iP5A results in more
outstanding energy saving compared to previous
effectual functions and protection algorithms, the iP5A provides constant
performance, in spite of
external power fluctuations.
Constant and Stable Performance
spite of external voltage fluctuations and
lightning surges, the iP5A optimizes
Improved System Management during Power Dips and Momentary Power Outages
unexpected power failure conditions, the
iP5A can bring the load to a controlled
stop, by utilizing the inertial energy.
This can prevent further process problems
Current Leakage Reduction Algorithm
Flux Braking Algorithm
algorithm reduces deceleration time, thereby
improving system efficiency.
Automatic Carrier Frequency Change
taking ambient temperature into account,
the iP5A can automatically adjust
the Carrier (Modulation) Frequency.
The iP5A has optimized protective functions, such as safety stop and
pre-excitation of the motor, amongst others.
Keypad & Easy Maintenance
construction allows for easy maintenance, with ease-of-access to all
has both NPN and PNP input, and you can
select one of them easily.
Abundant I/O Suggestion
Various Units of I/O Display
iP5A display can be calibrated in
many different types of process units.
Built-in RS485 and Optional Communication
Long-life Condenser and Simple Framework
adopts long-life condenser and enables easy
maintenance in simple framework.
Consumption Time Display
displays consumption time of components
so that users can replace them in time.
