SISI with Internal Gear

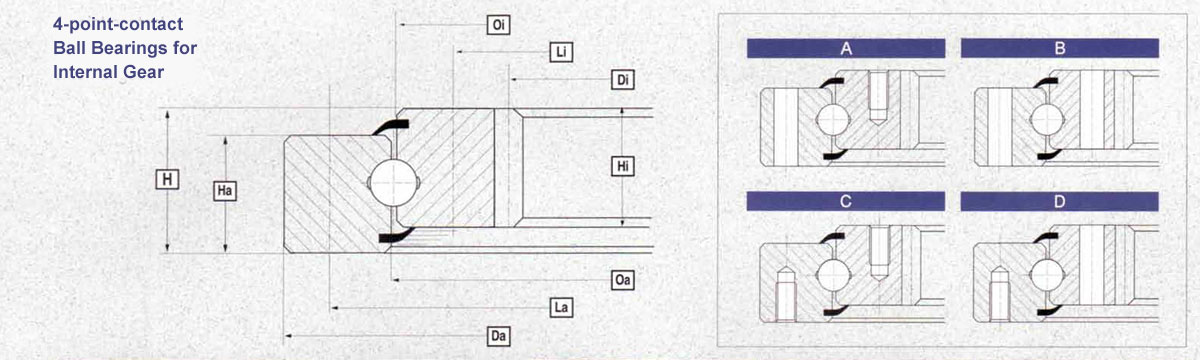

SISI Slewing Ring Bearing with Internal Gear

Model	Hole Type	Dimensions (mm)							Bolt Fixing						Gear
Model	Hole Type	Da	Di	H	Ha	Hi	Oa	Oi	La(mm)	da(mm)	na	Li(mm)	di(mm)	ni	M	Pa	Z
SISI-306	B	445	306	46	38	38	385	385	425	Ø13	12	345	Ø13	12	3	20	104
SISI-423	A	590	423	53	43	45	514	514	564	Ø13	16	466	M12	16	4.5	20	96
SISI-429	C	599	429	45	38.5	40	527	527	574	M16	19	482	M16	16	5.5	20	80
SISI-468	A	645	468	55	45	45	568	568	617	Ø14	20	520	M14	20	6	20	80
SISI-470	B	640	470	50	40	45	569	563	615	Ø13	16	520	Ø13	24	5	20	96
SISI-479.2	C	640	479.2	50	40	45	569	563	615	Ø13	16	520	Ø13	16	4	20	121
SISI-574	A	750	574	60	52	50	675	675	723	Ø15	20	628	M14	20	7	20	84
SISI-590	B	800	590	70	56	60	716	714	770	Ø17.5	20	660	Ø17.5	20	7	20	86
SISI-616	B	811	616	75	65	65	730	730	780	Ø18	24	680	Ø18	24	7	20	98
SISI-640	A	900	640	83	72	68	790	794	860	Ø20	24	725	M18	24	8	20	82
SISI-915	B	1240	915	101	90	90	1108	1112	1200	Ø24	22	1020	Ø24	36	12	20	78
SISI-945.4	A	1200	945.4	100	80	83	1103	1103	1165	Ø21.5	36	1040	M20	36	12	20	80
SISI-963	A	1195	963	85	74	70	1105	1101	1160	Ø19	36	1046	M16	36	10	20	90
SISI-1014	B	1300	1014	105	90	90	1187	1183	1260	Ø26	36	1110	Ø26	36	10	20	103
SISI-1080	A	1327	1080	110	89	90	1218	1222	1288	M21	32	1170	M20	36	12	20	92
SISI-1083-1	A	1310	1083	105.5	75	95	1211.5	1212.5	1275	Ø21.2	36	1170	M20	36	12	20	92
SISI-1083-2	A	1327	1083	110	89	95	1218	1221	1288	Ø21.2	36	1170	M20	36	12	27	92
SISI-1083.6	A	1310	1083.6	111	81	95	1211.5	1213	1275	Ø21.2	36	1170	M20	36	14	20	79
SISI-1131.2	A	1410	1131.2	121	88	111	1291	1295	1370	Ø21	30	1247	M20	36	14	20	82
SISI-1144	B	1415	1144	95	78	72	1300	1302	1370	Ø24	36	1230	Ø24	36	10	20	116
SISI-1162	A	1460	1162	120	95	105	1339.5	1340	1420	Ø25	35	1270	M24	36	14	20	85
SISI-1235-1	A	1530	1235	122	87	110	1407	1403	1485	Ø26	35	1358	M24	40	14	27	90
SISI-1235-2	A	1530	1235	122	89.5	112.5	1405	1405	1485	Ø26	35	1358	M24	40	14	27	90
SISI-1235-3	A	1550	1235	147	108	135	1403	1407	1505	Ø26	35	1358	M24	40	14	27	90
SISI-1320	B	1668	1320	128	109	100	1527	1527	1616	Ø26	44	1434	Ø26	44	12	20	111
SISI-1512	B	1978	1512	174	138	156	1792	1797	1920	Ø33	44	1670	Ø33	48	18	20	86
SISI-1962	A	2333	1962	110	90	100	2187	2190	2275	Ø30	52	2105	M27	52	18	20	110
SISI-2440	A	2863	2440	160	115	150	2699	2703	2805	Ø33	60	2600	M30	60	20	20	123
