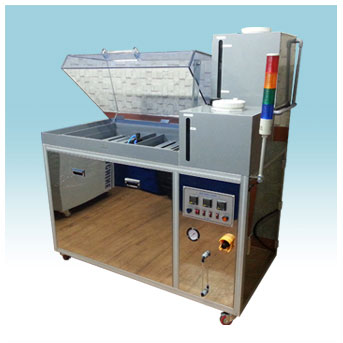

Automatic Salt Spray Tester

Spray Chamber



Operation Panel



Specifications

Model

NA-SA600

NA-SA900

NA-SA1500

NA-SA2000

Chamber Inner Size (mm)

600 x 500 x 500

900 x 600 x 600

1500 x 1000 x 600

2000 x 1200 x 500

Temperature Control

PID (Proportional-Integral-Derivative) Controller

Chamber Temperature

35 ± 1

Saturated Air Barrel Temp.

45 ± 1

Spray Capacity

1.5cc/hr

Chamber Inner Material

PVC

Tester Outer Material

PVC & SUS 304

Chamber Lid

PVC & ACRYL 8T

Air Cylinder for Chamber Lid

None

None

50mm in dia.

80mm in dia.

Chamber Heater

1.5KW

1.5KW

1.5KW x 2ea

1.5KW x 2ea

Saturated Air Barrel Heater

1.2KW

1.2KW

1.2KW

1.2KW

Power Source

220V / 1P / 3KW

220V / 1P / 3KW

220V / 3P / 5KW

220V / 3P / 7KW

Tester Dimensions (mm)

1200 x 700 x 1400

1500 x 800 x 1450

2100 x 1200 x 1800

2600 x 1500 x 2000

Weight (Kg)

80

150

250

350
