Triplex Plunger Pump Power Sprayer for Agricultural and Horticultural Use

User's Manual for WPS Power Sprayer Pump



Model

WPS- 30A

WPS- 50A

WPS- 70A

WPS-100A

WPS-150A

Pump Type

HTP (Horizontal Triplex Plunger) Pump

Power Transmission

V-Belt ( B-Type, 2 pcs )

Dimensions (mm)

360 x 267 x 338

400 x 285 x 365

430 x 310 x 395

476 x 367 x 478

598 x 448 x 563

Dry Weight (Kg)

16.5

19.0

22.4

38.8

62.0

Plunger Dia. x Stroke (mm)

22 x 24

28 x 30

32 x 34

38 x 38

42 x 50

Revolution

(rpm)

Normal

800

750

750

750

700

Irrigation

1200

1200

1200

1200

1200

Pressure

(Kg/)

Irrigation

10

10

10

10

10

Normal

25

25

25

25

25

Max.

35

35

35

35

35

Suction

(/min)

Normal

21.8

41.5

61.5

96.9

145.4

Irrigation

32.8

66.0

98.0

155.0

249.0

Power Required

(PS)

Irrigation

1.2

3.0

3.5

6.0

10.0

Normal

1.8

3.6

5.0

8.0

12.0

Max.

2.5

4.6

6.0

10.0

15.0

Lubricant ()

0.8

0.9

1.3

1.8

2.5

Spraying Capacity (ha/Day)

5~8

6~12

12~20

18~25

26~35

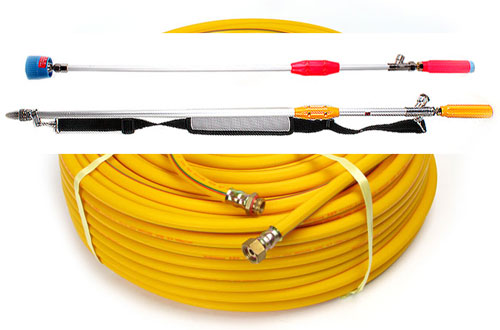

Power Sprayer Hose and Nozzle

Nominal Size

(mm)

Inner Dia.

(mm)

Outer Dia.

(mm)

Working Pressure

(Kgf/)

Burst Pressure

(Kgf/)

Weight

(Kg/100M)

Length packed

(M)

7.5

7.5±0.6

13.5±0.5

60

170

12

50,100,150,200

8.5

8.5±0.6

14.5±0.5

50

150

13

50,100,150,200

10.0

10.5±0.7

16.6±0.5

50

150

16

50,100,150,200

11.5

11.5±0.7

18.5±0.5

50

150

19

50,100,150,200

13.0

13.0±0.7

20.6±0.5

50

150

24

50,100,150

16.0

16.0±1.0

25.5±1.0

30

120

37

50,100,150

19.0

19.0±1.0

29.5±1.0

30

120

45

50,100

25.0

25.0±1.0

36.4±1.0

30

100

63

50
