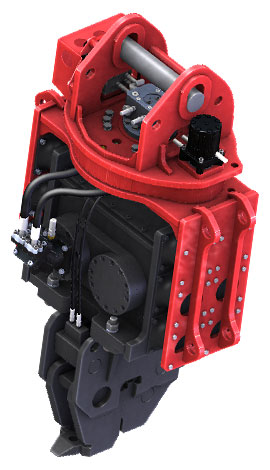

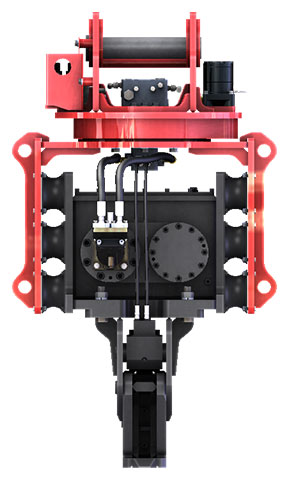

Vibro Hammer / Pile Driver



Features

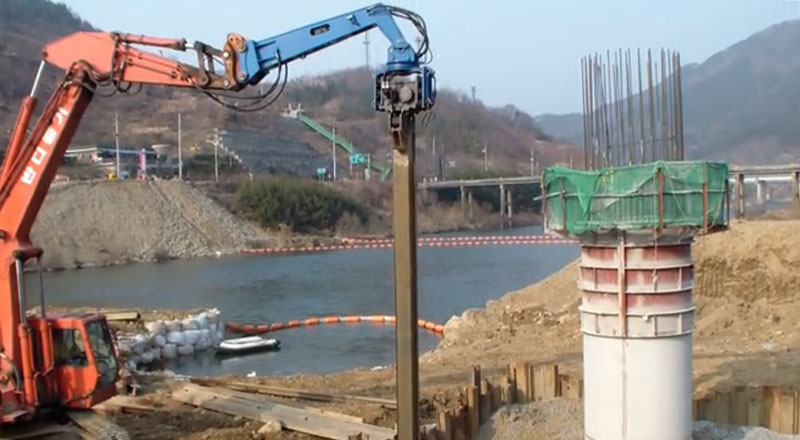

Applicable to Various Construction Sites

360° Rotating Mounting Bracket

Quick Hydraulic Installation

Intuitive Design

Optional Extension Boom

Models & Specifications

Model

AH25

AH30

AH40

Attachable Excavator Class
(Operating weight, tons)

18~26

25~35

34~46

Frequency
(bpm)

2800~3000

2500~2700

2000~2200

Eccentric Movement
(nm/in / lbp)

66 / 584

80 / 708

100 / 885

Centrifugal Force
(kN)

450

500

550

Amplitude
(mm)

12

14

16

Setting Pressure
(bar / psi)

250 / 3626

250 / 3626

280 / 4061

Max Operating Oil Flow
(L/min)

170-200

210-230

250-260

Slewing
(°, Angular Degree)

360

360

360

Weight
(kg)

1550

1700

1800

Extension Boom Weight
(Including Mounting Cap, kg)

580

700

870

Clamp Width
(A, mm)

65

65

65

Dimensions
(L x W x H, mm)

1840 x 1040 x 750

1900 x 1100 x 790

1920 x 1190 x 840





Video Clips for Vibro Hammer
