Vibro Ripper

Vibro Hammer

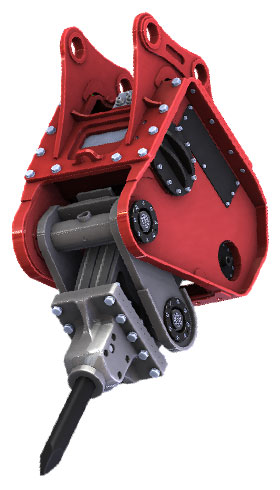

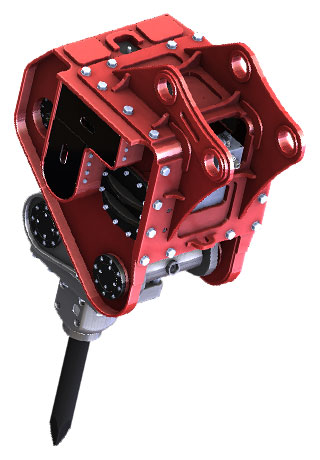

Vibro Ripper

3 to 5 Times Higher Production than Conventional Hydraulic Breakers

Minimized Noise Level

Minimized Maintenance Cost

Innovative Savings on Fuel Costs per Workload

Underwater Work Possible

Model	AR25	AR30	AR40	AR50
Attachable Excavator Class (Operating weight, tons)	20~25	28~34	36~43	46~60
Frequency (bpm)	2800~3000	2500~2700	2000~2200	2000~2200
Setting Pressure (bar / psi)	250 / 3626	250 / 3626	280 / 4061	280 / 4061
Return Pressure (bar / psi)	6 / 87	6 / 87	6 / 87	6 / 87
Max Oil Flow (L/min)	170-200	210-230	250-260	250-260
Weight (Including Mounting Cap, kg)	2900	3900	4900	5900
Chisel Tip Diameter / Length (mm)	110 / 1000	120 / 1150	130 / 1250	140 / 1300
Dimensions (L x W x H, mm)	2625 x 1410 x 880	2965 x 1580 x 950	3260 x 1695 x 1035	3389 x 1576 x 1128
