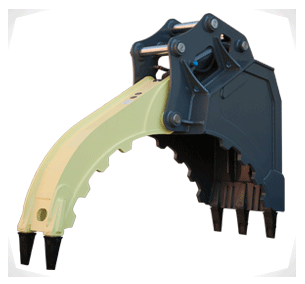

Excavator Grapple Bucket   ST-series


Features

Through extensive field testing and survey according to customer requirements from the development stage, ST-series Grapple Bucket becomes now a must.

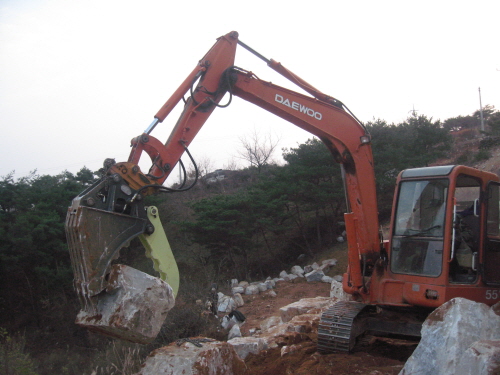

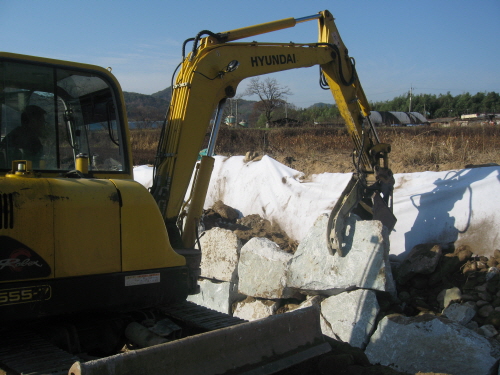

Good for landscaping, masonry, waste treatment, demolition and concrete piping work.

ST-series Grapple Bucket can be used without additional reinforcement due to using special steel of strong material.

Built-in check valve for safety is more secure.

High capacity cylinder specially designed for strong power.

Lever integrated operation switch increases convenience.


Models & Specifications

Model

DHST-02

DHST-03

DHST-04

DHST-06

Weight (Kg)

110

260

290

690

Max Jaw Opening (mm)

827

1300

1400

1800

Operating Hydraulic Oil Pressure (Kg/cm2)

100~130

110~140

120~160

150~170

Rated Hydraulic Oil Pressure (Kg/cm2)

150

170

180

190

Operating Oil Flow Rate (lpm)

15~40

30~55

50~100

90~110

Cylinder Capacity (Ton)

4

5.4

5.4

8.2

Applicable Excavators (Ton)

2~3

4~6

7~11

12~16



Model

DHST-08

DHST-10

DHST-14

DHST-20

Weight (Kg)

1190

1780

2100

2400

Max Jaw Opening (mm)

2300

2500

2500

2700

Operating Hydraulic Oil Pressure (Kg/cm2)

160~180

160~180

180~200

180~200

Rated Hydraulic Oil Pressure (Kg/cm2)

200

210

220

250

Operating Oil Flow Rate (lpm)

100~140

130~170

180~250

250~320

Cylinder Capacity (Ton)

10

12

14

15

Applicable Excavators (Ton)

17~23

24~30

31~40

41~50
