MAX21 Helical Worm Gear Reducer - BWP & VWP series ( Ratio 1/80 ~ 1/180 )

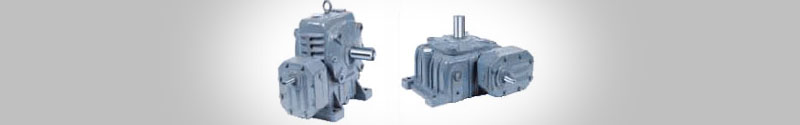

Features

Helical

Worm Reducer

- Small, mid and large-sized helical worm reducer

- Size : CD 70, 80, 100, 120, 135, 155, 175, 200, 225, 250, 300, 350, 400, 450, 500mm

- Reduction ratio : 1/80 ~ 1/180 worm

- Power Transmission : 0.2 ~ 200KW (1/4 ~ 270HP)

- Mounting : horizontal and vertical

- Excellent power transmission efficiency and remarkably low noise & vibration

- Compact size and light weight by advanced optimal gear design

- High precision and reliability by grinding and gear-shaving

- Strong and durable gear by carburizing suitable for AGMA standard

- Standardization of all parts and modular system of major components

- Accumulated know-how and quality from the experience of over 40 years in this field

MAX21 Helical Worm Gear Reducer ( Ratio 1/80 ~ 1/180 )

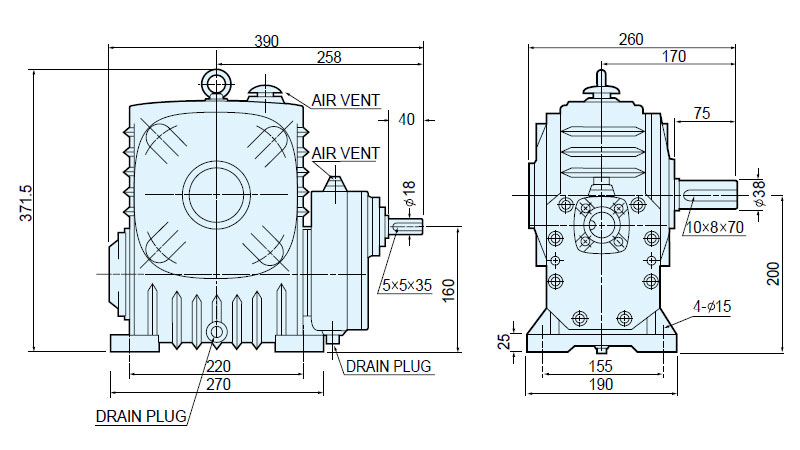

MAX21 BWP-100 Helical Worm Reducer / Horizontal

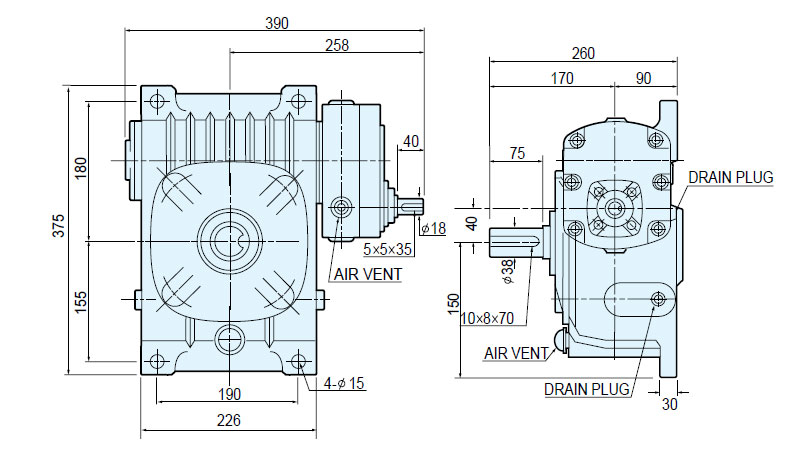

MAX21 VWP-100 Helical Worm Reducer / Vertical

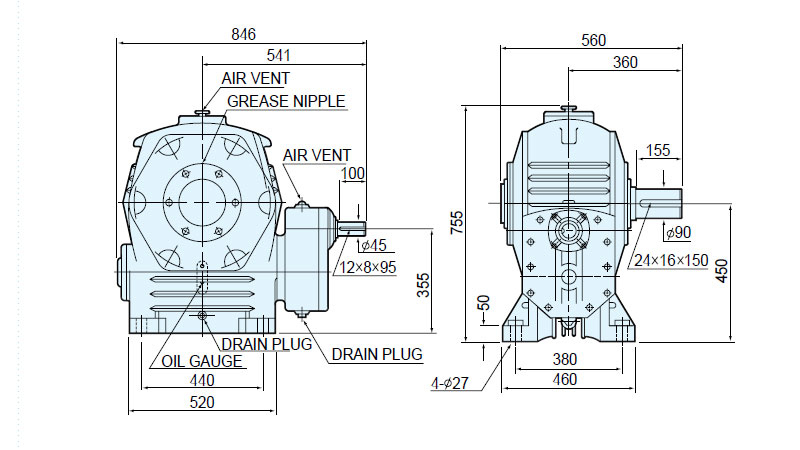

MAX21 BWP-250 Helical Worm Reducer / Horizontal

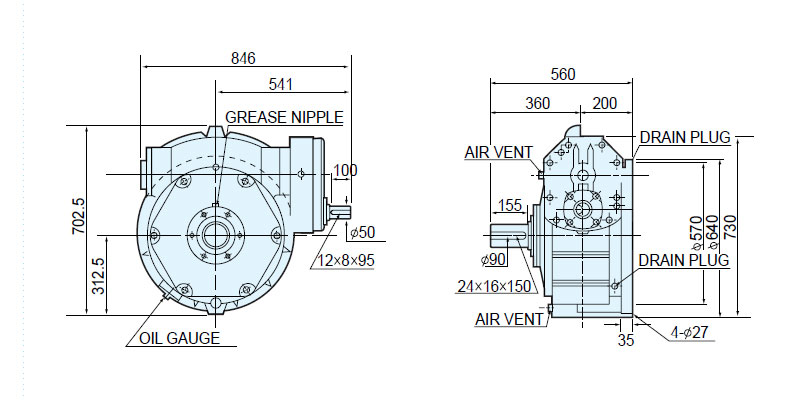

MAX21 VWP-250 Helical Worm Reducer / Vertical

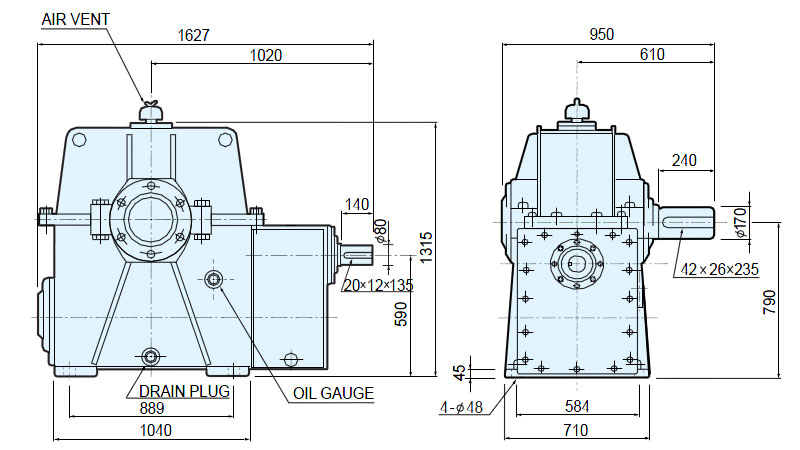

MAX21 BWP-500 Helical Worm Reducer / Horizontal

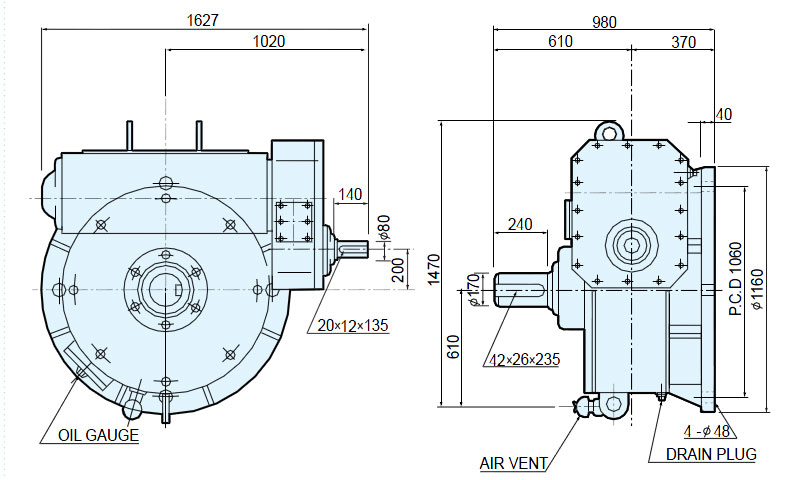

MAX21 VWP-500 Helical Worm Reducer / Vertical
