Features

Helical Worm

Geared Motor

- Small and mid-sized helical worm geared motor

- Size : 20, 25, 30, 35, 45, 60, 70mm, output shaft diameter

- Power transmission : 0.2 ~ 7.5KW (1/4 ~ 10HP)

- Reduction ratio : 1/5 ~ 1/180

- Hollow and solid output shaft available

- Excellent power transmission efficiency and remarkably low noise & vibration

- Compact size and light weight by advanced optimal gear design

- High precision and reliability by grinding and gear-shaving

- Strong and durable gear by carburizing suitable for AGMA standard

- Standardization of all parts and modular system of major components

- Accumulated know-how and quality from the experience of over 40 years in this field



Home

MAX Helical Worm Geared Motor ( Ratio 1/10 ~ 1/180 )

Helical Worm Gear Reducer

>> more info

Contact us

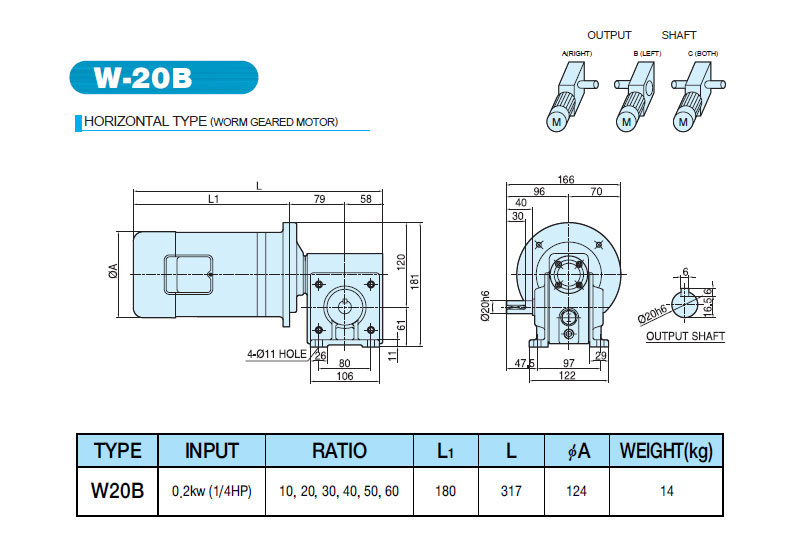

HW-20B Helical Worm Geared Motor, Horizontal

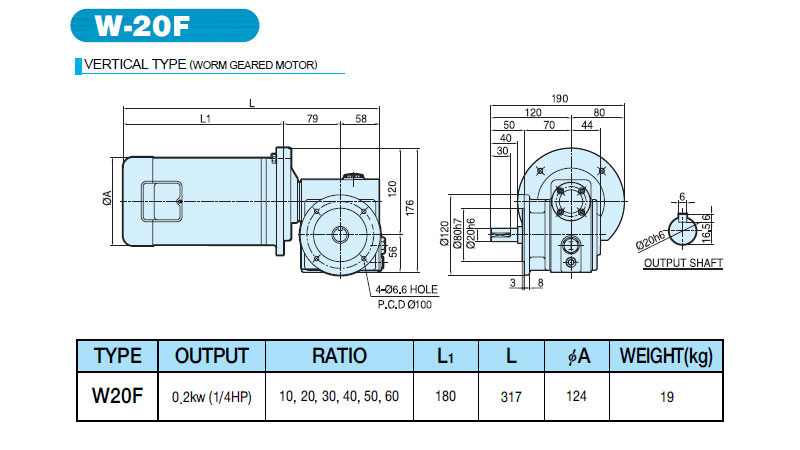

HW-20F Helical Worm Geared Motor, Vertical

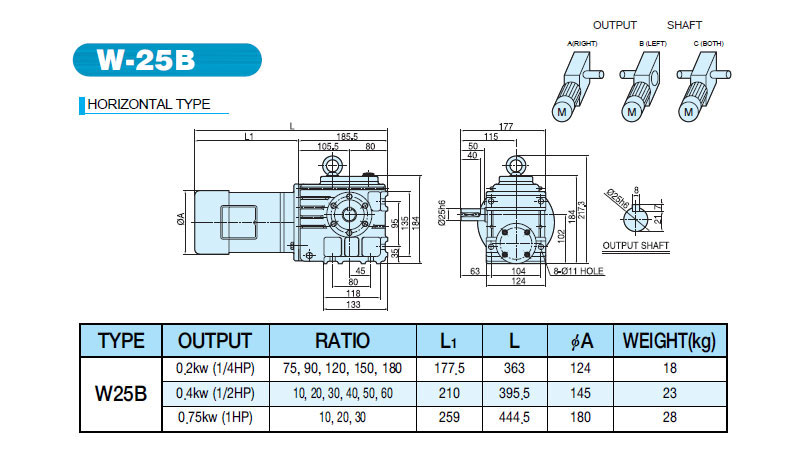

HW-25B Helical Worm Geared Motor, Horizontal

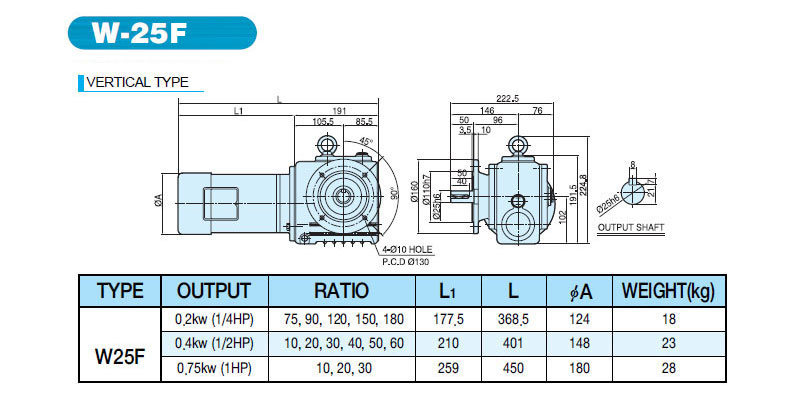

HW-25F Helical Worm Geared Motor, Vertical

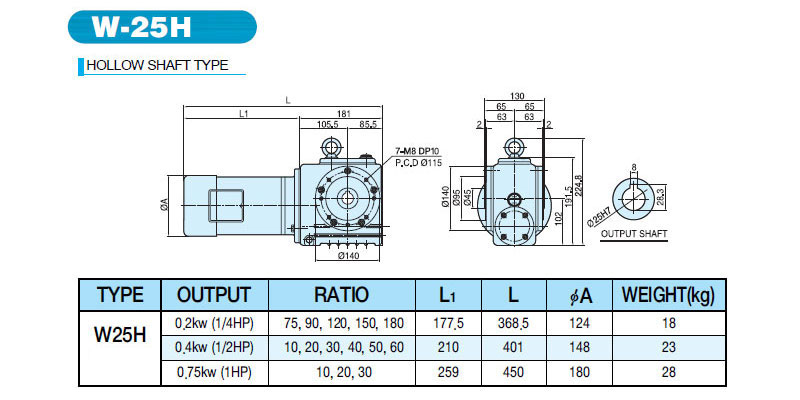

HW-25H Helical Worm Geared Motor with Hollow Output Shaft

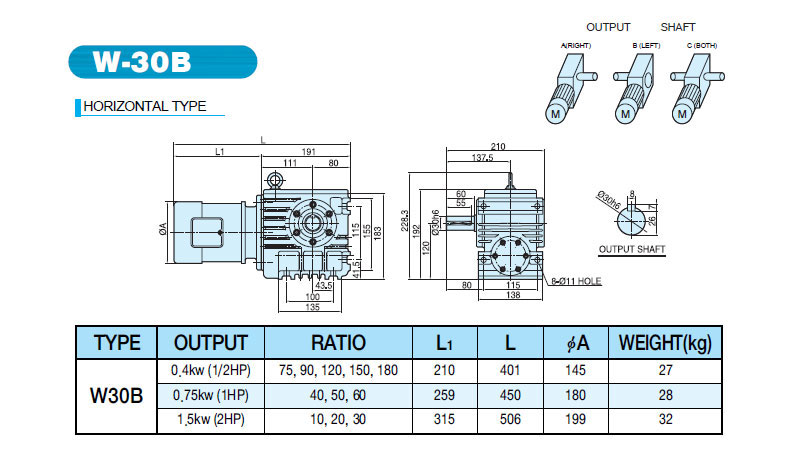

HW-30B Helical Worm Geared Motor, Horizontal

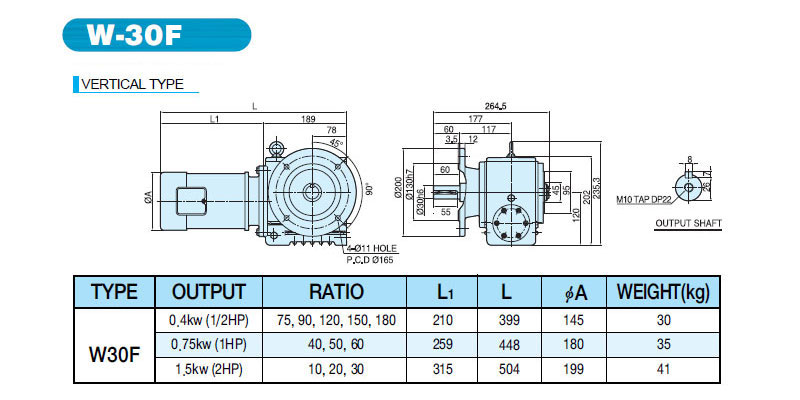

HW-30F Helical Worm Geared Motor, Vertical

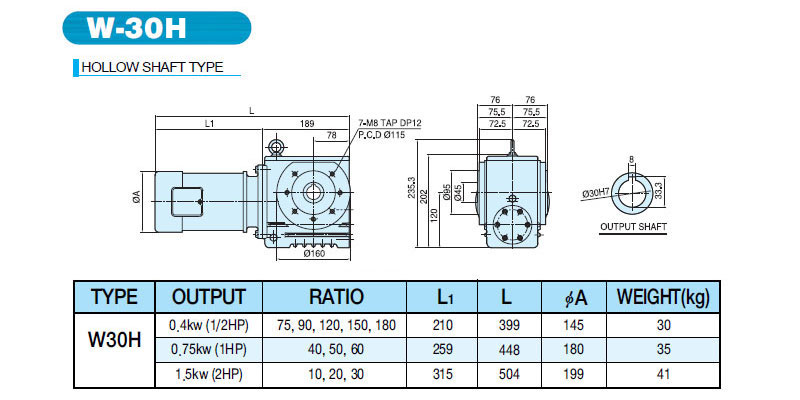

HW-30H Helical Worm Geared Motor with Hollow Output Shaft

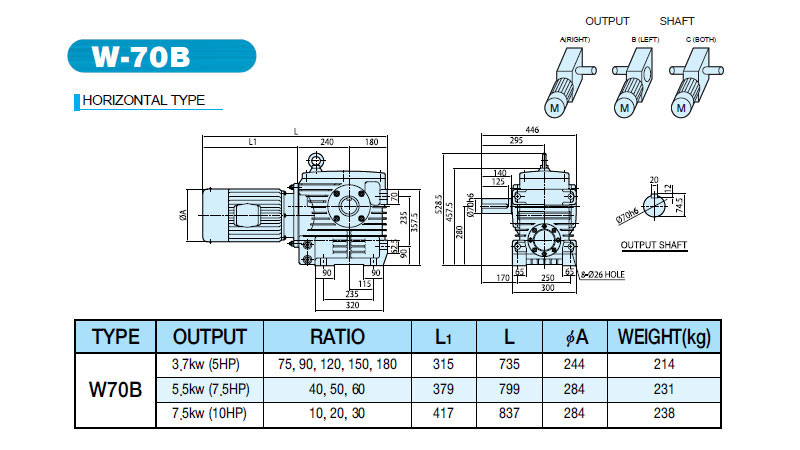

HW-70B Helical Worm Geared Motor, Horizontal

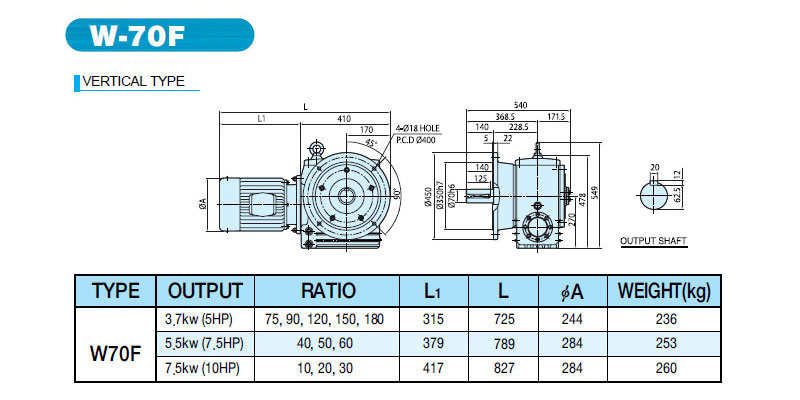

HW-70F Helical Worm Geared Motor, Vertical

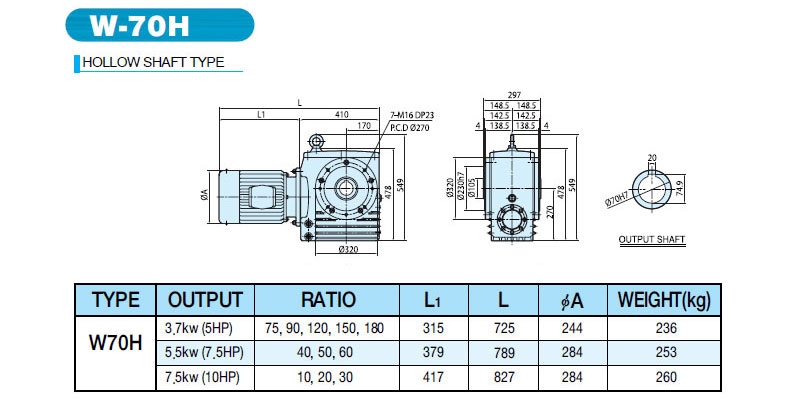

HW-70H Helical Worm Geared Motor with Hollow Output Shaft
