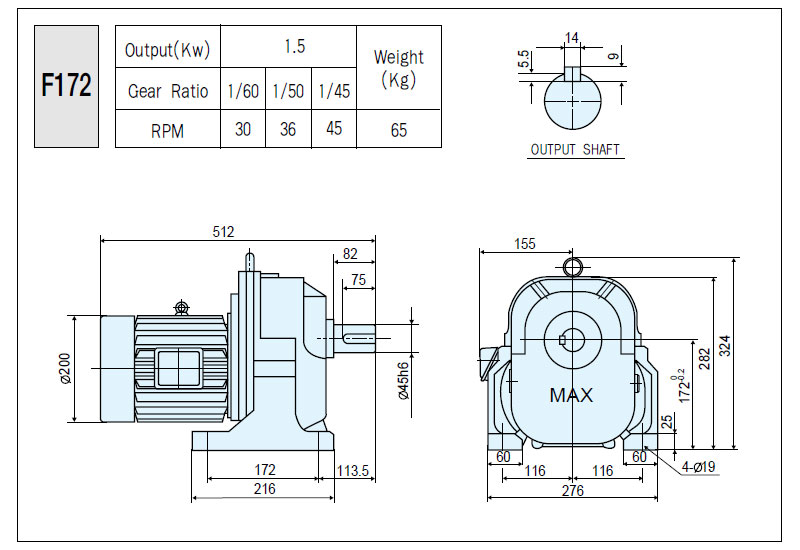

MG-F172 Horizontal 1.5KW (2HP) 3-phase
|
See
Vertical type of This Geared Motor
|
|
|
|
Motor |
Gear Ratio |
RPM |
|
60Hz,
4p
1800rpm
|
50Hz,
4p
1500rpm
|
|
1.5KW (2HP)
Three
Phase
|
1/40 |
45 |
37.5
|
|
1/50 |
36 |
30
|
|
1/60 |
30 |
25
|
|
1/75 |
24 |
20
|
|
1/90 |
20 |
16.7
|
|
1/100 |
18 |
15
|
|
1/120 |
15 |
12.5
|
|
V105
+ F172
0.4KW (1/2HP)
Three
Phase
|
1/300 |
6 |
5
|
|
1/400 |
4.5 |
3.75
|
|
1/500 |
3.6 |
3
|
|
1/600 |
3 |
2.5
|
|
1.5KW (2HP)
Single
Phase
|
1/40 |
45 |
37.5
|
|
1/50 |
36 |
30
|
|
1/60 |
30 |
25
|
|
1/75 |
24 |
20
|
|
1/90 |
20 |
16.7
|
|
1/100 |
18 |
15
|
|
1/120 |
15 |
12.5
|
|
V105
+ F172
0.4KW (1/2HP)
Single
Phase
|
1/300 |
6 |
5
|
|
1/400 |
4.5 |
3.75
|
|
1/500 |
3.6 |
3
|
|
1/600 |
3 |
2.5
|
|
|
|
|

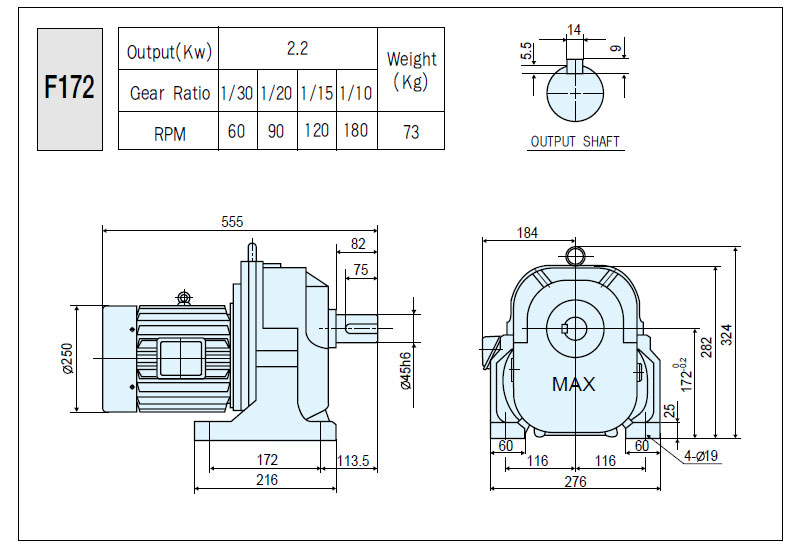

MG-F172 Horizontal 2.2KW (3HP) 3-phase
|
See
Vertical type of This Geared Motor
|
|
|
|
Motor |
Gear Ratio |
RPM |
|
60Hz,
4p
1800rpm
|
50Hz,
4p
1500rpm
|
|
2.2KW (3HP)
Three
Phase
|
1/5 |
360 |
300
|
|
1/10 |
180 |
150
|
|
1/15 |
120 |
100
|
|
1/20 |
90 |
75
|
|
1/30 |
60 |
50
|
|
|
|
|
|

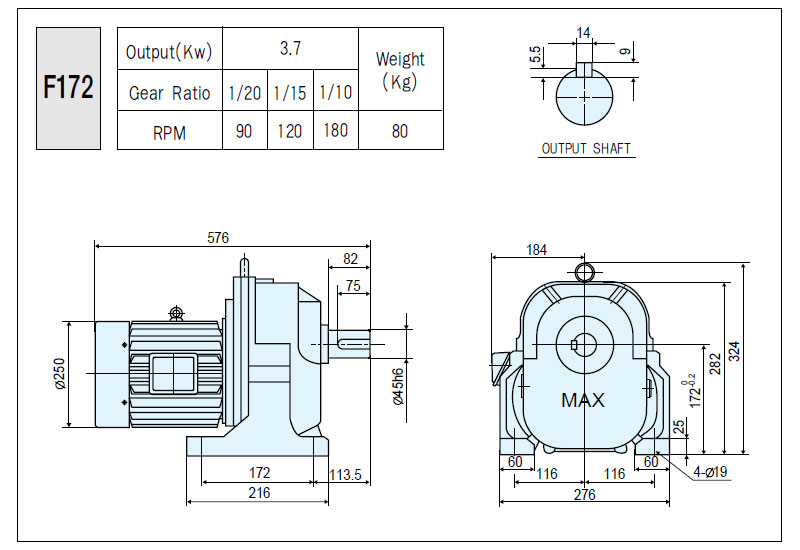

MG-F172 Horizontal 3.7KW (5HP) 3-phase
|
See
Vertical type of This Geared Motor
|
|
|
|
Motor |
Gear Ratio |
RPM |
|
60Hz,
4p
1800rpm
|
50Hz,
4p
1500rpm
|
|
3.7KW (5HP)
Three
Phase
|
1/5 |
360 |
300
|
|
1/10 |
180 |
150
|
|
1/15 |
120 |
100
|
|
1/20 |
90 |
75
|
|
|
|
