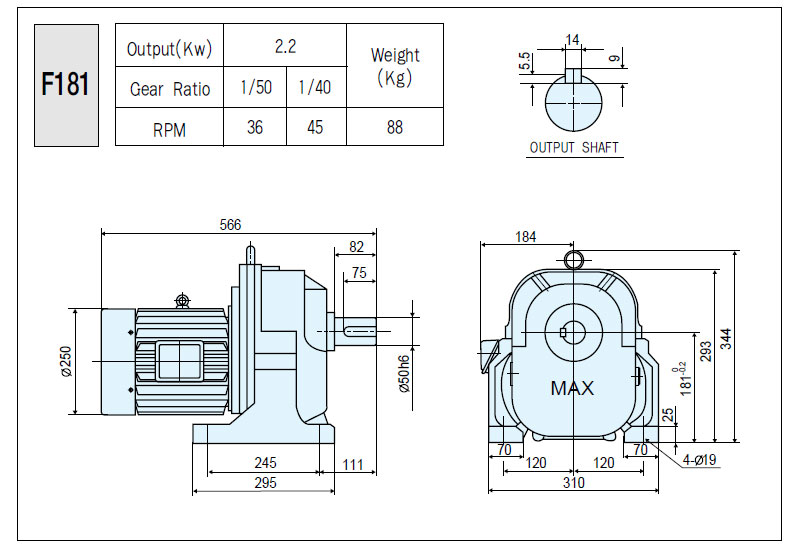

MG-F181 Horizontal 2.2KW (3HP) 3-phase

See Vertical type of This Geared Motor

Motor

Gear Ratio

RPM

60Hz, 4p

1800rpm

50Hz, 4p

1500rpm

2.2KW (3HP)

Three Phase

1/40

45

37.5

1/50

36

30

1/60

30

25

1/75

24

20

1/90

20

16.7

1/100

18

15

V153 + F181

1.5KW (2HP)

Three Phase

1/150

12

10

1/180

10

8.33

1/200

9

7.5

V135 + F181

0.75KW (1HP)

Three Phase

1/150

12

10

1/180

10

8.33

1/200

9

7.5

1/300

6

5

1/600

3

2.5

V135 + F181

0.75KW (1HP)

Single Phase

1/150

12

10

1/180

10

8.33

1/200

9

7.5

1/300

6

5

1/600

3

2.5

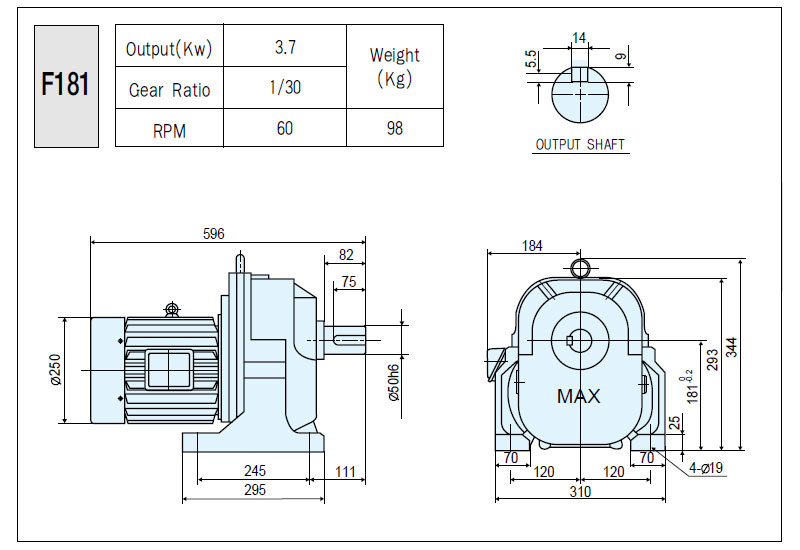

MG-F181 Horizontal 3.7KW (5HP) 3-phase

See Vertical type of This Geared Motor

Motor

Gear Ratio

RPM

60Hz, 4p

1800rpm

50Hz, 4p

1500rpm

3.7KW (5HP), 3-Phase

1/30

60

50

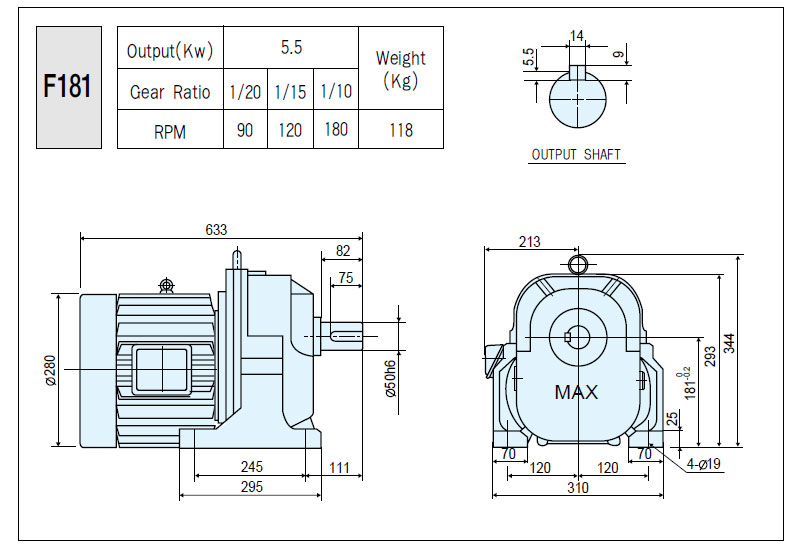

MG-F181 Horizontal 5.5KW (7.5HP) 3-phase

See Vertical type of This Geared Motor

Motor

Gear Ratio

RPM

60Hz, 4p

1800rpm

50Hz, 4p

1500rpm

5.5KW (7.5HP)

Three Phase

1/5

360

300

1/10

180

150

1/15

120

100

1/20

90

75

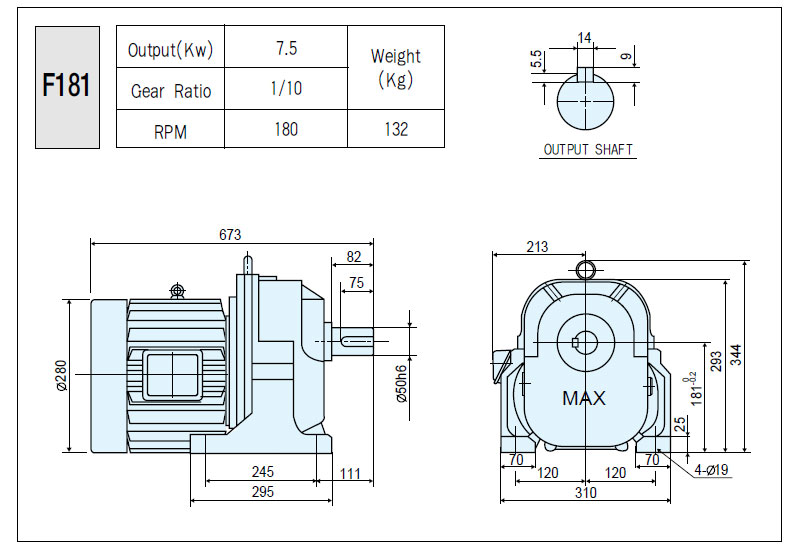

MG-F181 Horizontal 7.5KW (10HP) 3-phase

See Vertical type of This Geared Motor

Motor

Gear Ratio

RPM

60Hz, 4p

1800rpm

50Hz, 4p

1500rpm

7.5KW (10HP), 3-Phase

1/5

360

300

1/10

180

150
