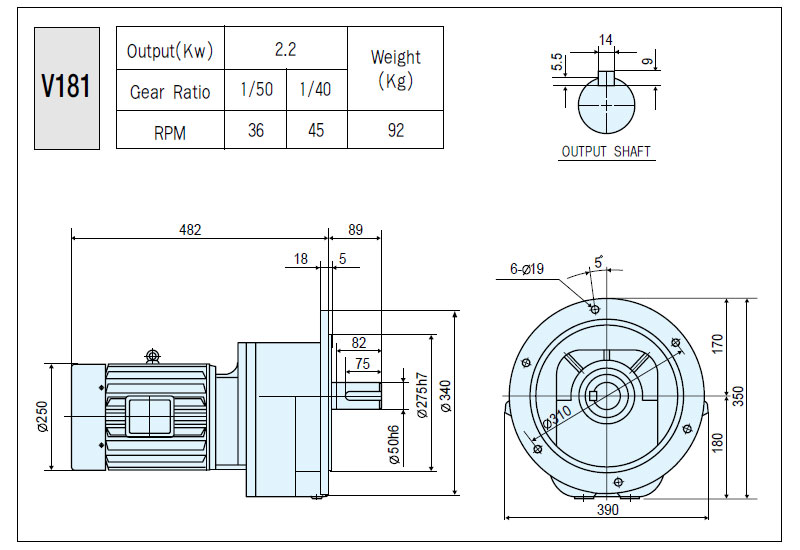

MG-V181 Vertical 2.2KW (3HP) 3-phase
|
See
Horizontal type of This Geared Motor
|
|
|
|
Motor |
Gear Ratio |
RPM |
|
60Hz,
4p
1800rpm
|
50Hz,
4p
1500rpm
|
|
2.2KW (3HP)
Three
Phase
|
1/40 |
45 |
37.5
|
|
1/50 |
36 |
30
|
|
1/60 |
30 |
25
|
|
1/75 |
24 |
20
|
|
1/90 |
20 |
16.7
|
|
1/100 |
18 |
15
|
|
V153
+ V181
1.5KW (2HP)
Three
Phase
|
1/150 |
12 |
10
|
|
1/180 |
10 |
8.33
|
|
1/200 |
9 |
7.5
|
|
V135
+ V181
0.75KW (1HP)
Three
Phase
|
1/150 |
12 |
10
|
|
1/180 |
10 |
8.33
|
|
1/200 |
9 |
7.5
|
|
1/300 |
6 |
5
|
|
1/600 |
3 |
2.5
|
|
V135
+ V181
0.75KW (1HP)
Single
Phase
|
1/150 |
12 |
10
|
|
1/180 |
10 |
8.33
|
|
1/200 |
9 |
7.5
|
|
1/300 |
6 |
5
|
|
1/600 |
3 |
2.5
|
|
|
|
|
|
|
|
|
|

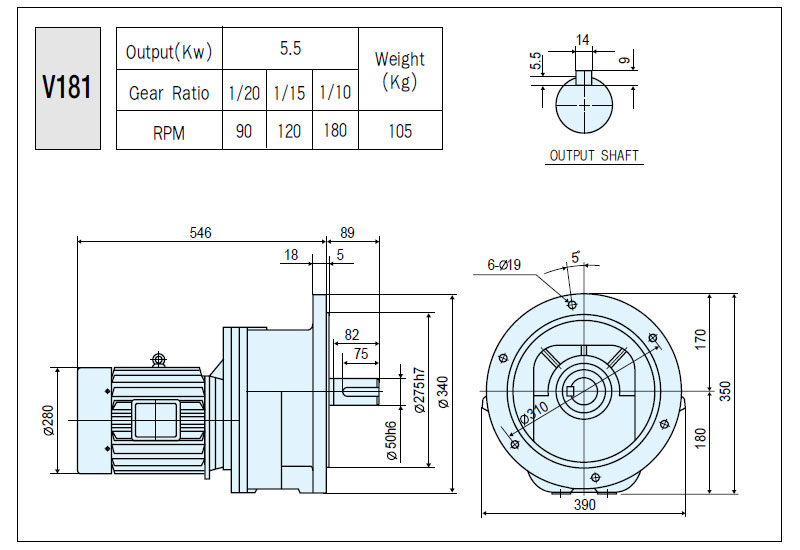

MG-V181 Vertical 5.5KW (7.5HP) 3-phase
|
See
Horizontal type of This Geared Motor
|
|
|
|
Motor |
Gear Ratio |
RPM |
|
60Hz,
4p
1800rpm
|
50Hz,
4p
1500rpm
|
|
5.5KW (7.5HP)
Three
Phase
|
1/5 |
360 |
300
|
|
1/10 |
180 |
150
|
|
1/15 |
120 |
100
|
|
1/20 |
90 |
75
|
|
|
|
|
|
|
|
|
|
