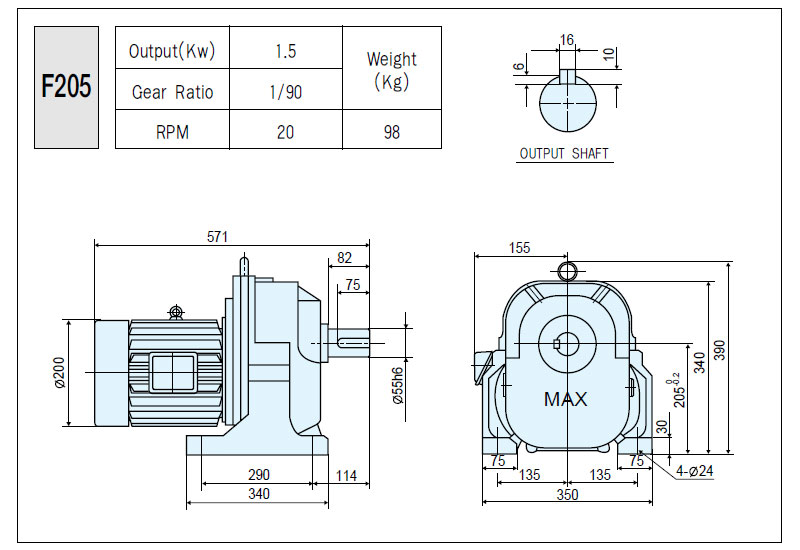

MG-F205 Horizontal 1.5KW (2HP) 3-phase

See Vertical type of This Geared Motor

Motor

Gear Ratio

RPM

60Hz, 4p

1800rpm

50Hz, 4p

1500rpm

1.5KW (2HP), 3-Phase

1/90

20

16.7

V153 + F205, 1.5KW (2HP), 3-Phase

1/300

6

5

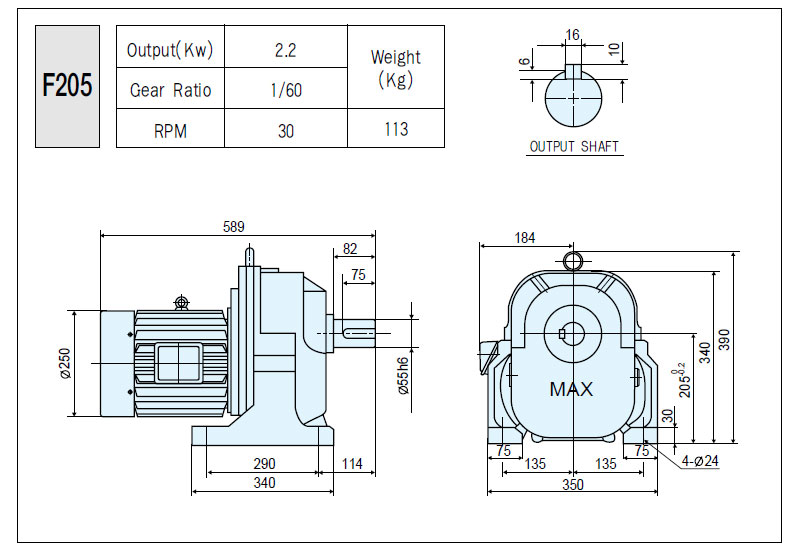

MG-F205 Horizontal 2.2KW (3HP) 3-phase

See Vertical type of This Geared Motor

Motor

Gear Ratio

RPM

60Hz, 4p

1800rpm

50Hz, 4p

1500rpm

2.2KW (3HP)

Three Phase

1/60

30

25

1/75

24

20

1/90

20

16.7

1/100

18

15

1/120

15

12.5

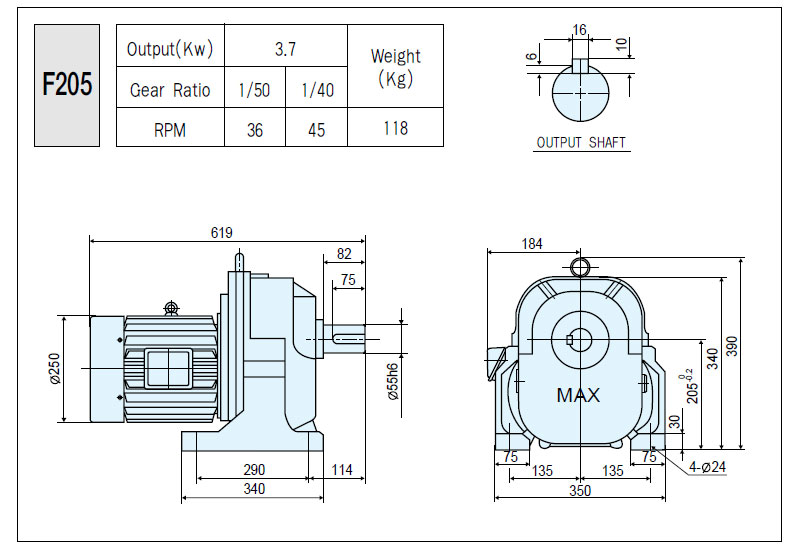

MG-F205 Horizontal 3.7KW (5HP) 3-phase

See Vertical type of This Geared Motor

Motor

Gear Ratio

RPM

60Hz, 4p

1800rpm

50Hz, 4p

1500rpm

3.7KW (5HP)

Three Phase

1/40

45

37.5

1/50

36

30

1/60

30

25

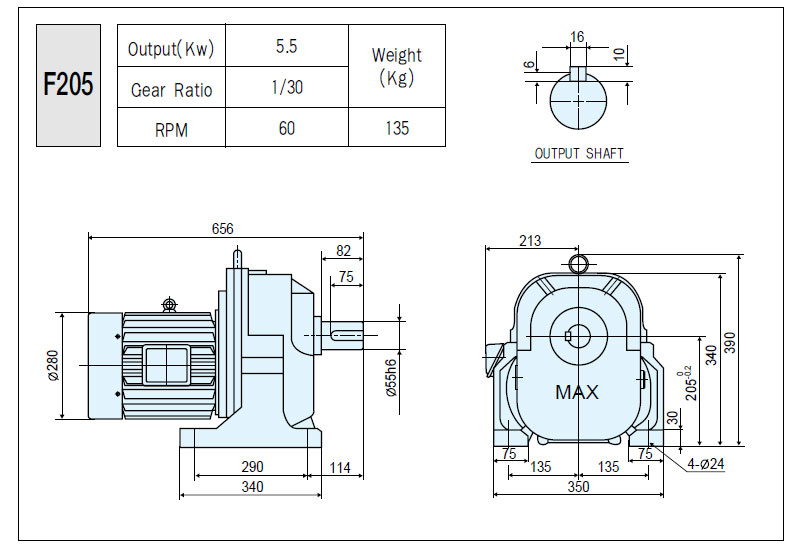

MG-F205 Horizontal 5.5KW (7.5HP) 3-phase

See Vertical type of This Geared Motor

Motor

Gear Ratio

RPM

60Hz, 4p

1800rpm

50Hz, 4p

1500rpm

5.5KW (7.5HP), 3-Phase

1/30

60

50

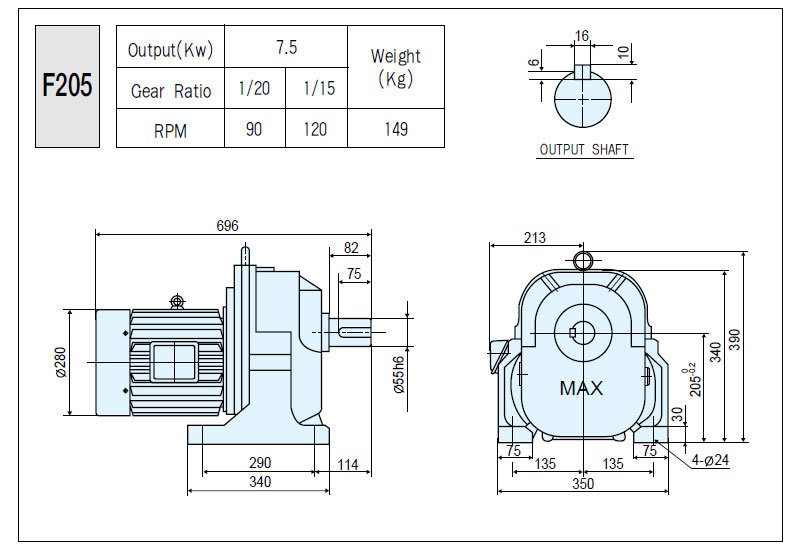

MG-F205 Horizontal 7.5KW (10HP) 3-phase

See Vertical type of This Geared Motor

Motor

Gear Ratio

RPM

60Hz, 4p

1800rpm

50Hz, 4p

1500rpm

7.5KW (10HP), 3-Phase

1/15

120

100

1/20

90

75

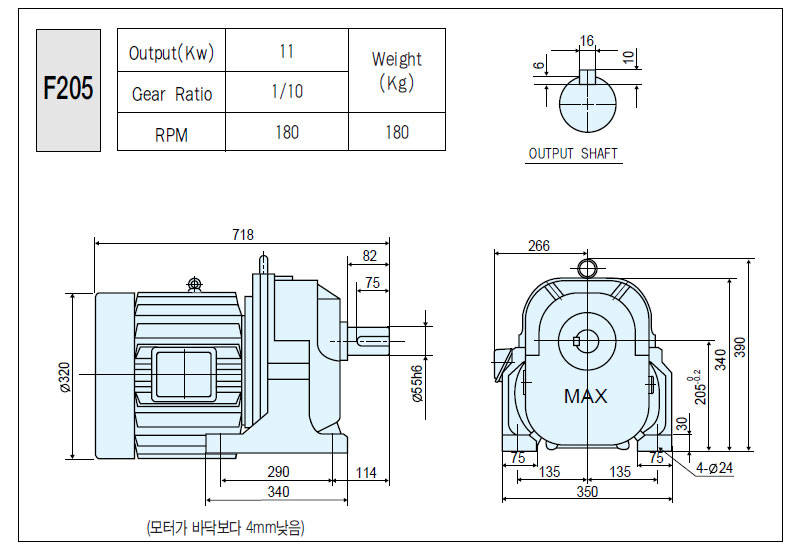

MG-F205 Horizontal 11KW (15HP) 3-phase

See Vertical type of This Geared Motor

Motor

Gear Ratio

RPM

60Hz, 4p

1800rpm

50Hz, 4p

1500rpm

11KW (15HP), 3-Phase

1/5

360

300

1/10

180

150
