MG-V205 MAX Vertical Geared Motor

MG-V205 MAX Vertical Geared Motors

Home

MAX Geared Motors

MG-V205 Vertical 1.5KW (2HP) 3-phase

See Horizontal type of This Geared Motor

Motor	Gear Ratio	RPM
Motor	Gear Ratio	60Hz, 4p 1800rpm	50Hz, 4p 1500rpm
1.5KW (2HP), 3-Phase	1/90	20	16.7
V153 + V205, 1.5KW (2HP), 3-Phase	1/300	6	5

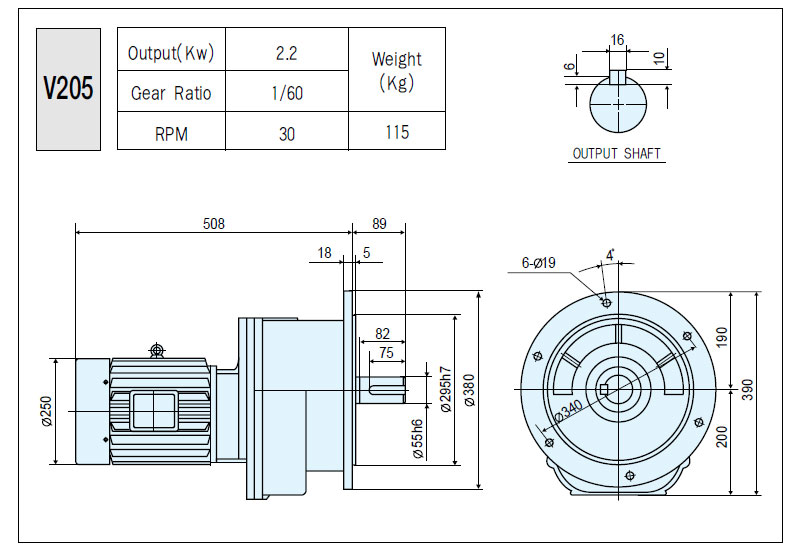

MG-V205 Vertical 2.2KW (3HP) 3-phase

See Horizontal type of This Geared Motor

Motor	Gear Ratio	RPM
Motor	Gear Ratio	60Hz, 4p 1800rpm	50Hz, 4p 1500rpm
2.2KW (3HP) Three Phase	1/60	30	25
	1/75	24	20
	1/90	20	16.7
	1/100	18	15
	1/120	15	12.5

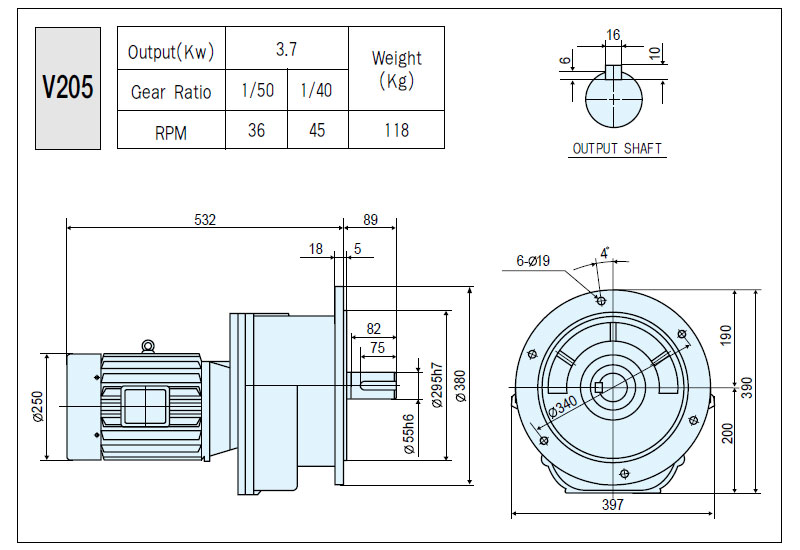

MG-V205 Vertical 3.7KW (5HP) 3-phase

See Horizontal type of This Geared Motor

Motor	Gear Ratio	RPM
Motor	Gear Ratio	60Hz, 4p 1800rpm	50Hz, 4p 1500rpm
3.7KW (5HP) Three Phase	1/40	45	37.5
	1/50	36	30
	1/60	30	25

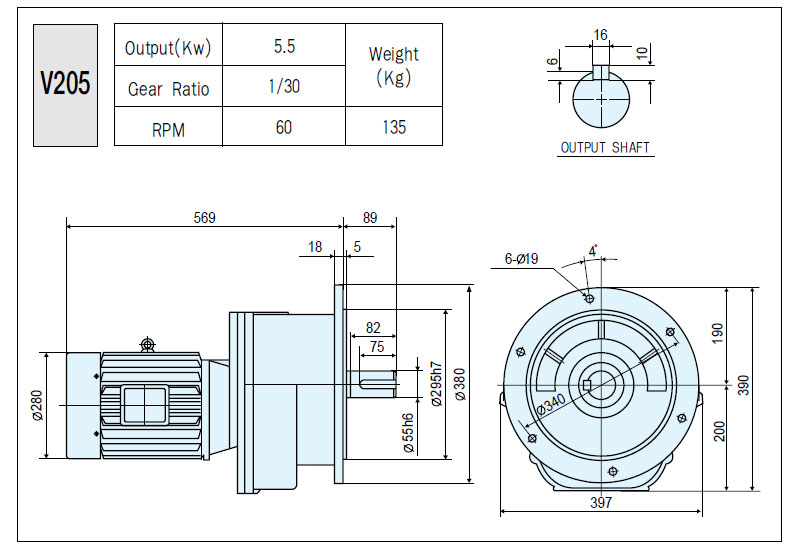

MG-V205 Vertical 5.5KW (7.5HP) 3-phase

See Horizontal type of This Geared Motor

Motor

Gear Ratio

RPM

60Hz, 4p

1800rpm

50Hz, 4p

1500rpm

5.5KW (7.5HP), 3-Phase

1/30

60

50

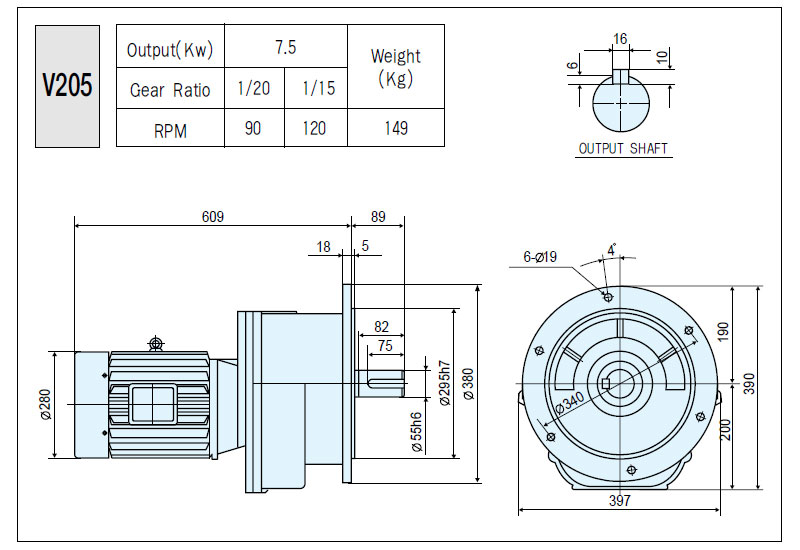

MG-V205 Vertical 7.5KW (10HP) 3-phase

See Horizontal type of This Geared Motor

Motor	Gear Ratio	RPM
		60Hz, 4p 1800rpm	50Hz, 4p 1500rpm
7.5KW (10HP), 3-Phase	1/15	120	100
	1/20	90	75

MG-V205 Vertical 11KW (15HP) 3-phase

See Horizontal type of This Geared Motor

Motor	Gear Ratio	RPM
		60Hz, 4p 1800rpm	50Hz, 4p 1500rpm
11KW (15HP), 3-Phase	1/5	360	300
	1/10	180	150
