MG-F270 Horizontal 2.2KW (3HP) 3-phase
|
See
Vertical type of This Geared Motor
|
|
|
|
Motor |
Gear Ratio |
RPM |
|
60Hz,
4p
1800rpm
|
50Hz,
4p
1500rpm
|
|
2.2KW (3HP),
3-Phase |
1/120 |
15 |
12.5
|
|
V172
+ F270,
2.2KW (3HP), 3-Phase |
1/200 |
9 |
7.5
|
|
|
|
|
|
|
|
|
|

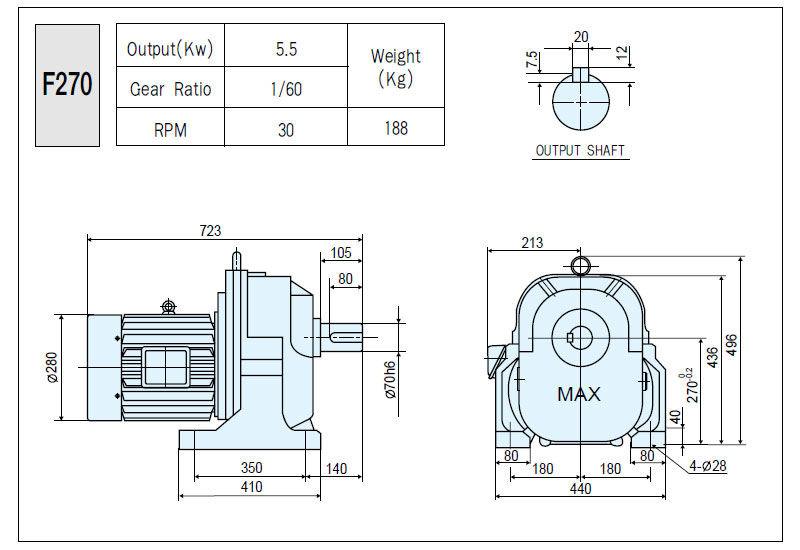

MG-F270 Horizontal 5.5KW (7.5HP) 3-phase
|
See
Vertical type of This Geared Motor
|
|
|
|
Motor |
Gear Ratio |
RPM |
|
60Hz,
4p
1800rpm
|
50Hz,
4p
1500rpm
|
|
5.5KW (7.5HP)
Three
Phase
|
1/75 |
24 |
20
|
|
1/90 |
20 |
16.7
|
|
1/100 |
18 |
15
|
|
|
|
|
|

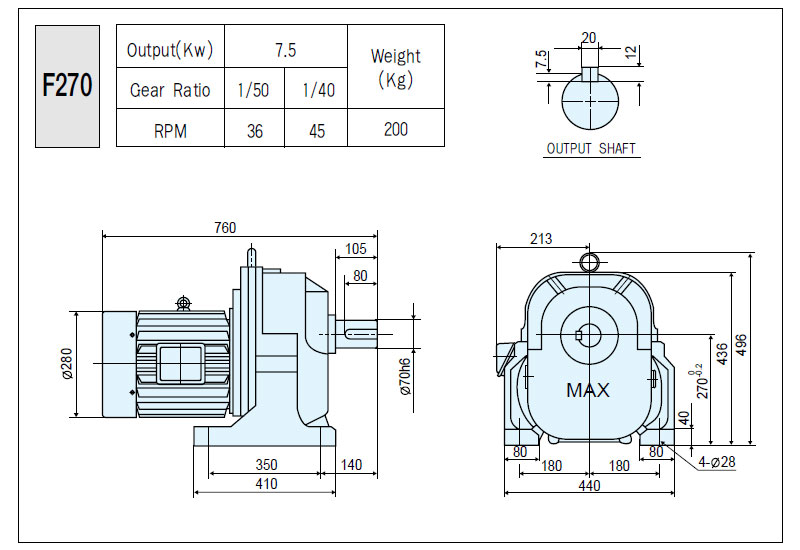

MG-F270 Horizontal 7.5KW (10HP) 3-phase
|
See
Vertical type of This Geared Motor
|
|
|
|
Motor |
Gear Ratio |
RPM |
|
60Hz,
4p
1800rpm
|
50Hz,
4p
1500rpm
|
|
7.5KW (10HP)
Three
Phase
|
1/40 |
45 |
37.5
|
|
1/50 |
36 |
30
|
|
1/60 |
30 |
25
|
|
|
|
|
|
|
|
|
|
|
|
|
|
