MG-V270 MAX Vertical Geared Motor

MG-V270 MAX Vertical Geared Motors

Home

MAX Geared Motors

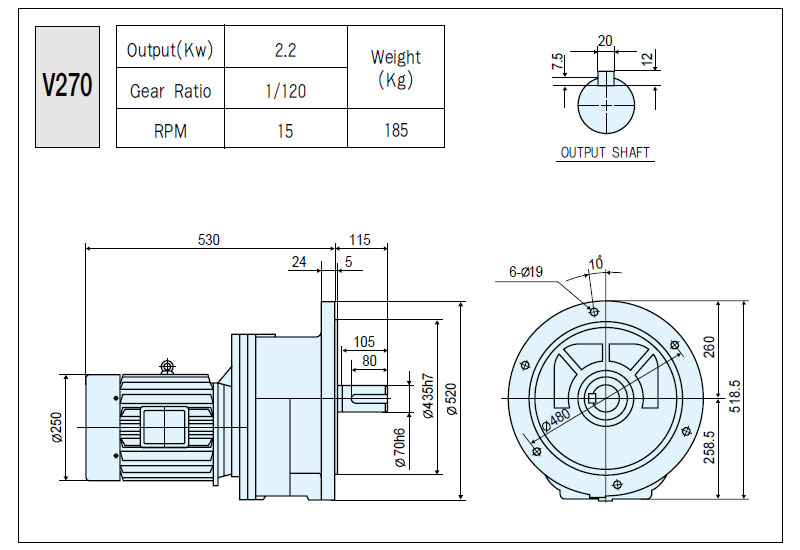

MG-V270 Vertical 2.2KW (3HP) 3-phase

See Horizontal type of This Geared Motor

Motor	Gear Ratio	RPM
Motor	Gear Ratio	60Hz, 4p 1800rpm	50Hz, 4p 1500rpm
2.2KW (3HP), 3-Phase	1/120	15	12.5
V172 + V270, 2.2KW (3HP), 3-Phase	1/200	9	7.5

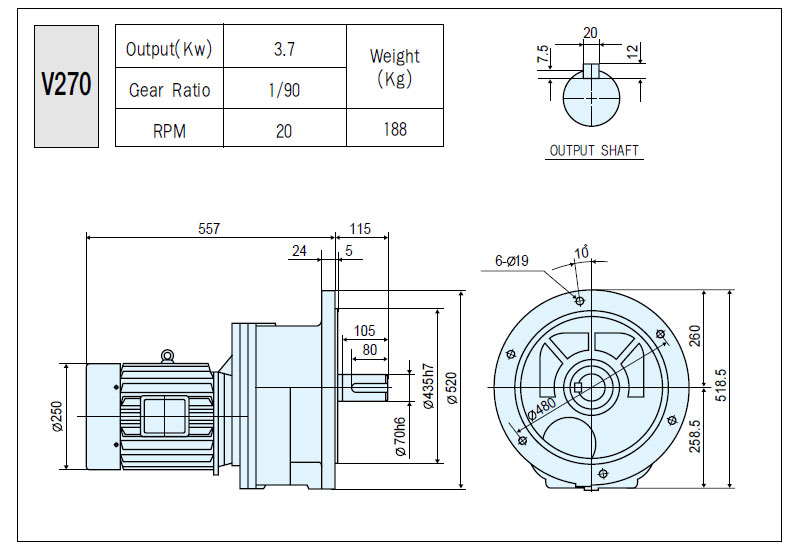

MG-V270 Vertical 3.7KW (5HP) 3-phase

See Horizontal type of This Geared Motor

Motor	Gear Ratio	RPM
		60Hz, 4p 1800rpm	50Hz, 4p 1500rpm
3.7KW (5HP), 3-Phase	1/90	20	16.7
	1/100	18	15

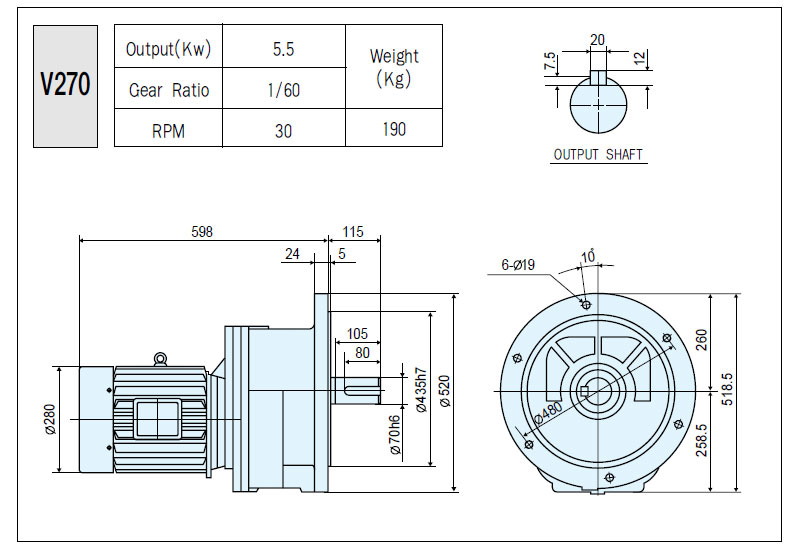

MG-V270 Vertical 5.5KW (7.5HP) 3-phase

See Horizontal type of This Geared Motor

Motor	Gear Ratio	RPM
Motor	Gear Ratio	60Hz, 4p 1800rpm	50Hz, 4p 1500rpm
5.5KW (7.5HP) Three Phase	1/75	24	20
	1/90	20	16.7
	1/100	18	15

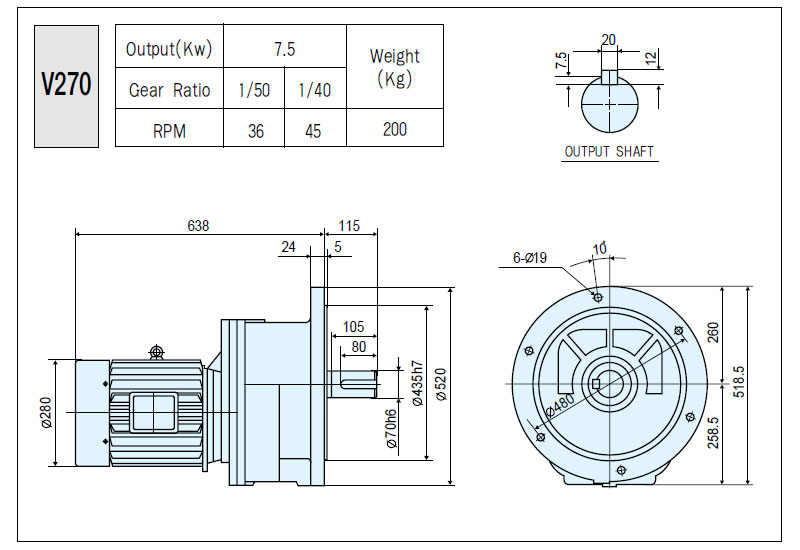

MG-V270 Vertical 7.5KW (10HP) 3-phase

See Horizontal type of This Geared Motor

Motor	Gear Ratio	RPM
Motor	Gear Ratio	60Hz, 4p 1800rpm	50Hz, 4p 1500rpm
7.5KW (10HP) Three Phase	1/40	45	37.5
	1/50	36	30
	1/60	30	25

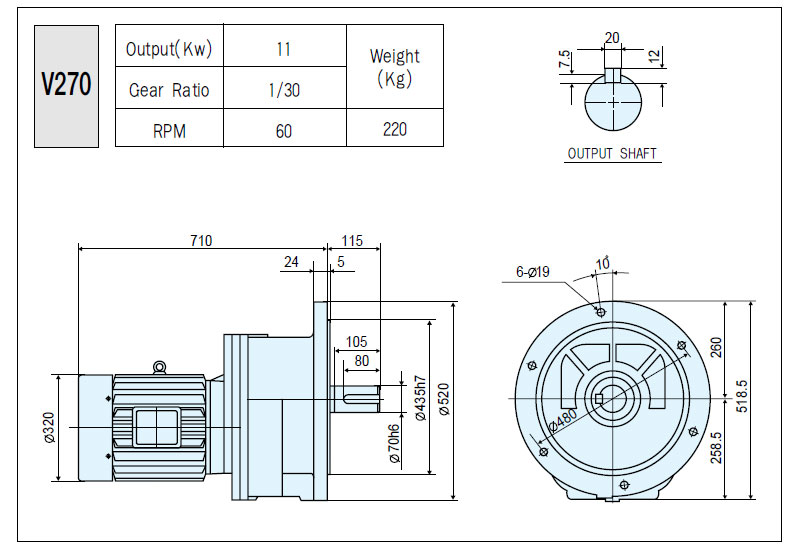

MG-V270 Vertical 11KW (15HP) 3-phase

See Horizontal type of This Geared Motor

Motor

Gear Ratio

RPM

60Hz, 4p

1800rpm

50Hz, 4p

1500rpm

11KW (15HP), 3-Phase

1/30

60

50

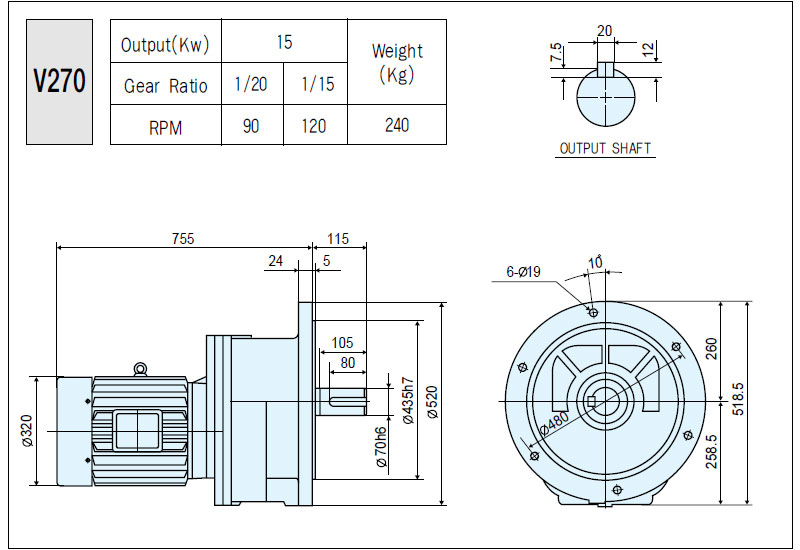

MG-V270 Vertical 15KW (20HP) 3-phase

See Horizontal type of This Geared Motor

Motor	Gear Ratio	RPM
Motor	Gear Ratio	60Hz, 4p 1800rpm	50Hz, 4p 1500rpm
15KW (20HP) Three Phase	1/15	120	100
	1/20	90	75
	1/30	60	50
