Model |
Applicable
Motor |
|
CHB-A-105 |
0.2KW
x 4P,
0.4KW x 4P |
|
CHB-A-120 |
0.75KW
x 4P,
0.4KW x 6P |
|
CHB-A-130 |
1.5KW
x 4P,
0.75KW x 6P |
|
CHB-A-160 |
2.2KW
x 4P,
1.5KW x 6P |
|
CHB-A-165 |
3.7KW
x 4P,
2.2KW x 6P |
|
CHB-A-190 |
5.5KW
x 4P,
7.5KW x 4P |
|
CHB-A-240 |
11KW
x 4P,
15KW x 4P |
|
|
|

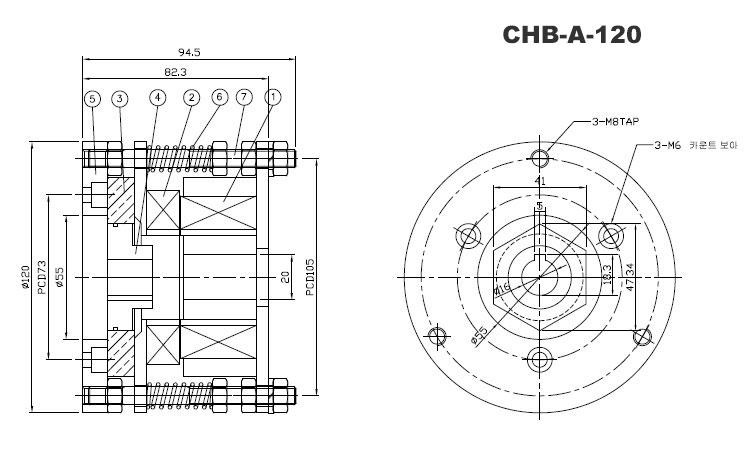

Changwon
CHB-A-120 AC Magnetic
Disc Brake (B-type)
|
|
|
|
|
|
Model |
CHB-A-120 |
| Type |
AC Magnetic
Disc Brake (B-type) |
Power
Consumption |
66/129.2/44W |
| Applicable
Motors |
0.75KW
x 4P, 0.4KW
x 6P |
Frequency |
50Hz,
60Hz |
| Outer
Diameter |
120mm |
Air
Gap |
0.3mm |
| Disc
Diameter |
88mm |
Moment
of inertia (GD2)
|
0.00048kgfm2 |
| Overall
Length |
95mm |
Armature Attraction Time
|
0.22sec |
| Keyway |
5 x 5 x 18 |
Armature
Release Time
|
0.26sec |
| Friction
Torque |
0.51kgfm |
Insulation
Class |
B class |
| Rated
Voltage |
AC 220/380/440V |
Insulation
Resistance |
980MΩ DC 500V |
| Rated
Current at 20℃ |
0.31/0.034/0.1A |
Max
RPM |
1,800RPM |
| Resistance at 20℃ |
54/162/304Ω |
Weight |
3.1kg |
|
|
