Model |
Applicable
Motor |
|
CHB-A-105 |
0.2KW
x 4P,
0.4KW x 4P |
|
CHB-A-120 |
0.75KW
x 4P,
0.4KW x 6P |
|
CHB-A-130 |
1.5KW
x 4P,
0.75KW x 6P |
|
CHB-A-160 |
2.2KW
x 4P,
1.5KW x 6P |
|
CHB-A-165 |
3.7KW
x 4P,
2.2KW x 6P |
|
CHB-A-190 |
5.5KW
x 4P,
7.5KW x 4P |
|
CHB-A-240 |
11KW
x 4P,
15KW x 4P |
|
|
|
Changwon

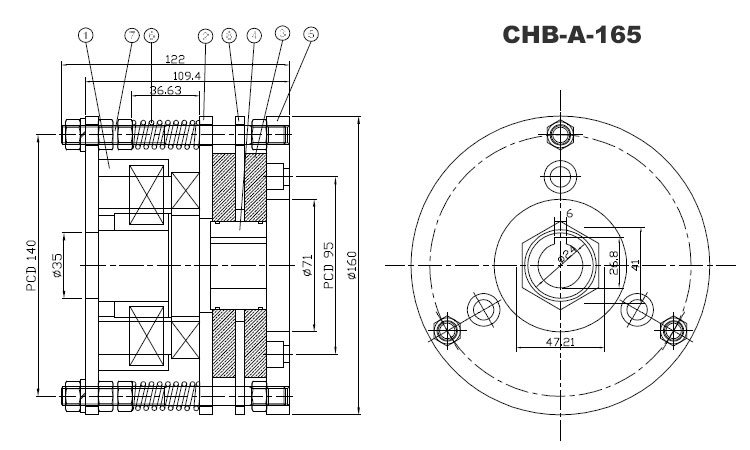

CHB-A-165 AC Magnetic
Disc Brake (B-type)
|
|
|
|
|
|
Model |
CHB-A-165 |
| Type |
AC Magnetic
Disc Brake (B-type) |
Power
Consumption |
99/102.6/98W |
| Applicable
Motors |
3.7KW
x 4P, 2.2KW
x 6P |
Frequency |
50Hz,
60Hz |
| Outer
Diameter |
160mm |
Air
Gap |
0.40mm |
| Disc
Diameter |
120mm |
Moment
of inertia (GD2)
|
0.0032kgfm2 |
| Overall
Length |
122mm |
Armature Attraction Time
|
0.28sec |
| Keyway |
6 x 6 x 30 |
Armature
Release Time
|
0.31sec |
| Friction
Torque |
3.7kgfm |
Insulation
Class |
B class |
| Rated
Voltage |
AC 220/380/440V |
Insulation
Resistance |
980MΩ DC 500V |
| Rated
Current at 20℃ |
0.45/0.27/0.45A |
Max
RPM |
1,800RPM |
| Resistance at 20℃ |
23/69/71Ω |
Weight |
8.5kg |
|
|
