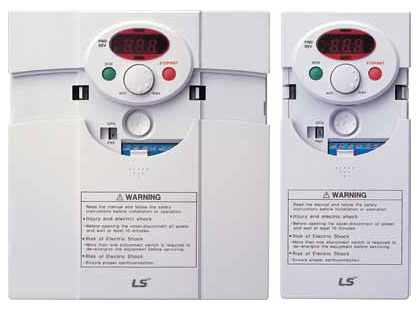

LS Starvert   SV015iC5-1  Variable Frequency Drive Inverter



Model

Motor Rating

Output Ratings

Input Ratings

Capacity

FLA

Voltage

Frequency

Voltage

Frequency

Current

SV015iC5-1

2HP(1.5KW)

3kVA

8A

Three phase

200 to 230V

0 to 400Hz

Single phase

200 to 230V

50 to 60Hz

16A





Features of Starvert iC5



iC5 serves a wide variety of applications to meet the majority of user needs

Compact iC5 is the best for a small and cost effective configuration

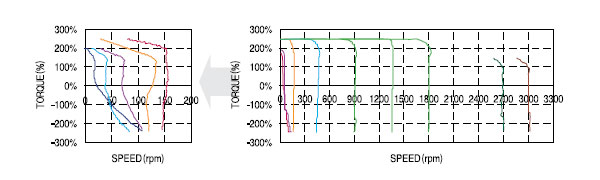

Sensorless vector control

The iC5 adopts sensorless vector control algorithm, and it improves not only the torque control characteristics, but the speed controlability in an uncertain condition caused by the load variation as well.



Auto tuning

The auto tuning algorithm in the iC5 sets the motor factors automatically that brings the traditional commissioning difficulties mainly in low speed by the load variation and the low torque generation to a settlement.



PNP and NPN switchable dual signals

The iC5 provides PNP and NPN signals for outside controllers. It works with 24Vdc regardless of the type of PLC or control signals.



Communication interface, ModBus-RTU

The iC5 provides the most popular communication interface, ModBus-RTU for remote control by PLC or other devices.



Programmable PID process control

PID process control is used in iC5 to make speed corrections quickly with a minimal amount of overshoot and oscillation for the control of flow, temperature, pressure and etc.

More LS Starvert   iC5   Variable Frequency Drive Inverters
