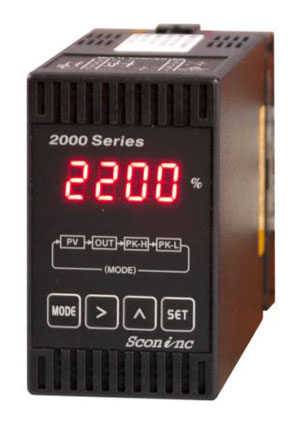

Input
Signals
|
B Group |
Volt ,T/C |
|
mV, LCT |
Input
Signal Types
|
Type |
Range |
Symbol |
|
T/C |
B(PR) |
0 ~ 1800°C |
TC- B |
|
R(RR) |
0 ~ 1750°C |
TC- R |
|
S(PR) |
0 ~ 1750°C |
TC- S |
|
K(CA) |
-250 ~
1350°C |
TC- K |
|
E(CRC) |
-199.9 ~
700.0°C |
TC- E |
|
J(IC) |
-199.9 ~
800.0°C |
TC- J |
|
T(CC) |
-199.9 ~
400.0°C |
TC- T |
|
N(NN) |
-250 ~
1350°C |
TC- N |
|
Volt |
mV |
-100 ~
100mV DC |
MV |
|
1 Volt |
-1.0 ~
1V DC |
1 V |
|
10 Volt |
-10 ~
10V DC |
10 V |
|
LCT |
mV |
0 ~
100mV DC |
MV |
Ordering
Example
|
Ordering
Code |
SCONI-2200-55X
|
|
Input
|
Various Thermocouples
Ex. : TC- K (-250 ~
1350°C)
|
|
5 |
Output-1
|
DC 4 ~ 20mA |
|
5 |
Output-2
|
DC 4 ~ 20mA |
|
X |
Power
Supply
|
AC 85~264V
(50~60Hz) |
|
Ordering
Code |
SCONI-2200-5NY
|
|
Input
|
Various signals
Ex. : TC- K (-250 ~
1350°C)
or
DC -10 ~ 10V
|
|
5 |
Output-1
|
DC 4 ~ 20mA |
|
N |
Output-2
|
None |
|
Y |
Power
Supply
|
DC 24V |
|
Ordering
Code |
SCONI-2200-5NX
SCN-220-5NX
|
|
Input
|
Various Thermocouples
Ex. : TC- K (-250 ~
1350°C)
|
|
5 |
Output-1
|
DC 4 ~ 20mA |
|
N |
Output-2
|
None |
|
X |
Power
Supply
|
AC 85~264V
(50~60Hz) |
|
Output-1
Signals
|
1 |
DC 0 ~ 5V |
|
2 |
DC 0 ~ 10V |
|
3 |
DC 1 ~ 5V |
|
4 |
DC 0 ~ 20mA |
|
5 |
DC 4 ~ 20mA |
|
6 |
DC 1 ~ 5mA |
|
R |
Other |
Output-2
Signals
|
1 |
DC 0 ~ 5V |
|
2 |
DC 0 ~ 10V |
|
3 |
DC 1 ~ 5V |
|
4 |
DC 0 ~ 20mA |
|
5 |
DC 4 ~ 20mA |
|
6 |
DC 1 ~ 5mA |
|
R |
Other |
Power
Supply
|
X |
AC 85~264V
(50~60Hz) |
|
Y |
DC 24V
(Option) |
|
