Rotating Demolition
Shears
|
|
|
Features
- Special steel for
shearing
- Safety device to protect the
torsion of the cutter
- Protective reinforcement
for the damage of the cutter body
- Convenience
for assembly and disassembly of the cutter
(bolt & nut)
- Protection of the
abrasion by using special material
-
Cover device to protect the cylinder rod
-
Easy to assemble and disassemble by lightweight
of the center joint
- Installed high
power motor
- Reinforcement for cylinder
trunnion
|
Models & Specifications
|
Model
|
MD08R
|
MD15R
|
MD20R
|

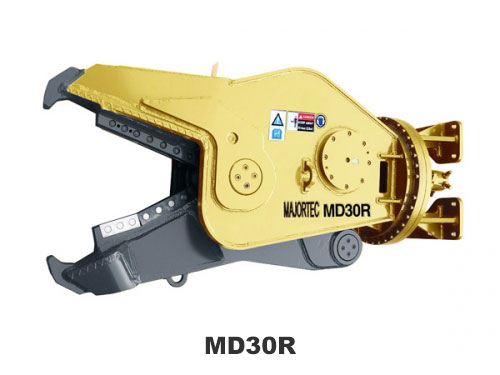

MD30R
|

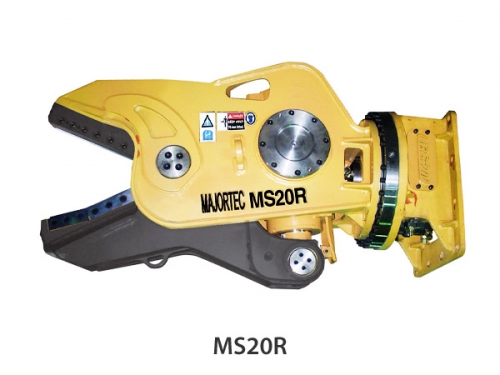

MS20R
|

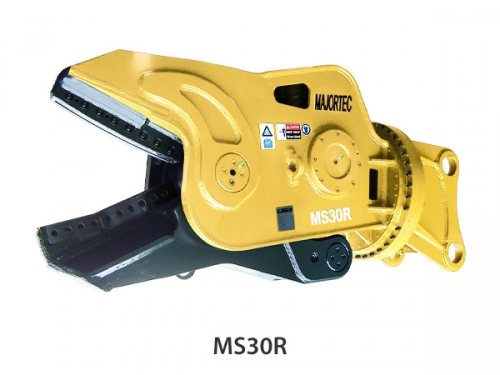

MS30R
|
MS40R
|
| Weight,
kg |
1000 |
1600 |
2000 |
2450 |
2000 |
2450 |
2950 |
| Opening
Width, mm |
530 |
610 |
645 |
731 |
507 |
571 |
650 |
| Operating
Pressure, kg/cm2 |
230 |
280 |
300 |
320 |
300 |
320 |
320 |
| Suitable
Excavator, ton |
14
~ 16 |
16
~ 22 |
18
~ 26 |
28
~ 32 |
18
~ 26 |
28
~ 32 |
32
~ 36 |
|
|
|
|
|
