Features

MAX21 Single

Worm Gear Reducer

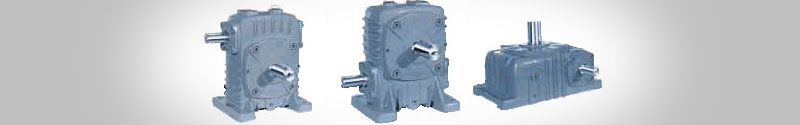

- Small, mid and large-sized worm gear reducer

- Size : CD 50, 60, 70, 80, 100, 120, 135, 155, 175, 200, 225, 250, 300, 350, 400, 450, 500mm

- Reduction ratio : 1/10 ~ 1/60

- Power Transmission : 0.2 ~ 200KW (1/4 ~ 270HP)

- Mounting : horizontal and vertical

- Various positioning and rotating direction of the shafts possible

- Flange fit for IEC standard motor attaching available (Up to size CD 155mm)

- Reducer with motor attached available

- Accumulated know-how and quality from the experience of over 40 years in this field

- Model code reference

       WU : Horizontal output shaft and input shaft at the upper

       WB : Horizontal output shaft and input shaft at the lower

       WV : Vertical output Shaft



Home

MAX21 Single Worm Gear Reducer

( Ratio 1/10 ~ 1/60 )

Single Worm

Geared Motor

Double Worm

Gear Reducer

Double Worm

Geared Motor

Contact us

MAX21 Single Worm Gear Reducers ( Ratio 1/10 ~ 1/60 )

Model

*Size (mm)

Motor RPM

Power (HP at Ratio 1/10)

Power (HP at Ratio 1/60)

Horizontal

Vertical

Input

Output

Input

Output

WB-50

WU-50

WV-50

50

1800

1.43

1.15

0.31

0.19

WB-60

WU-60

WV-60

60

1800

2.32

1.87

0.64

0.39

WB-70

WU-70

WV-70

70

1800

3.47

2.82

0.95

0.59

WB-80

WU-80

WV-80

80

1800

4.93

4.01

1.29

0.79

WB-100

WU-100

WV-100

100

1800

8.73

7.19

1.96

1.27

WB-120

WU-120

WV-120

120

1800

13.80

11.40

3.15

2.04

WB-135

WU-135

WV-135

135

1800

19.70

16.50

4.15

2.80

WB-155

WU-155

WV-155

155

1800

32.90

27.30

5.85

3.98

WB-175

WU-175

WV-175

175

1800

46.80

39.10

8.23

5.74

WB-200

-

WV-200

200

1800

52.60

44.00

11.50

8.01

WB-225

-

WV-225

225

1800

71.20

60.20

16.00

11.30

WB-250

-

WV-250

250

1800

96.60

81.30

20.20

14.60

WB-300

-

WV-300

300

1800

137.00

116.00

32.30

23.50

WB-350

-

WV-350

350

1500

183.00

155.00

44.20

32.40

WB-400

-

WV-400

400

1500

266.00

226.00

65.60

49.20

WB-450

-

WV-450

450

1200

299.00

254.00

73.10

54.30

WB-500

-

WV-500

500

1200

400.00

340.00

95.40

70.80

*Size (mm) : Distance between Input & Output Shaft Centers of the Reducer
