MAX21 Single Worm Geared Motor - WUM, WBM & WVM series ( Ratio 1/10 ~ 1/60 )

MAX21 Single

Worm Gear Reducer

- Small, mid and large-sized worm gear reducer

- Size : CD 50, 60, 70, 80, 100, 120, 135, 155, 175, 200, 225, 250, 300, 350, 400, 450, 500mm

- Reduction ratio : 1/10 ~ 1/60

- Power Transmission : 0.2 ~ 200KW (1/4 ~ 270HP)

- Mounting : horizontal and vertical

- Various positioning and rotating direction of the shafts possible

- Flange fit for IEC standard motor attaching available (Up to size CD 155mm)

- Reducer with motor attached available

- Accumulated know-how and quality from the experience of over 40 years in this field

- Model code reference

WU : Horizontal output shaft and input shaft at the upper

WB : Horizontal output shaft and input shaft at the lower

WV : Vertical output Shaft

MAX21 Single Worm Geared Motor

( Ratio 1/10 ~ 1/60 )

Single Worm

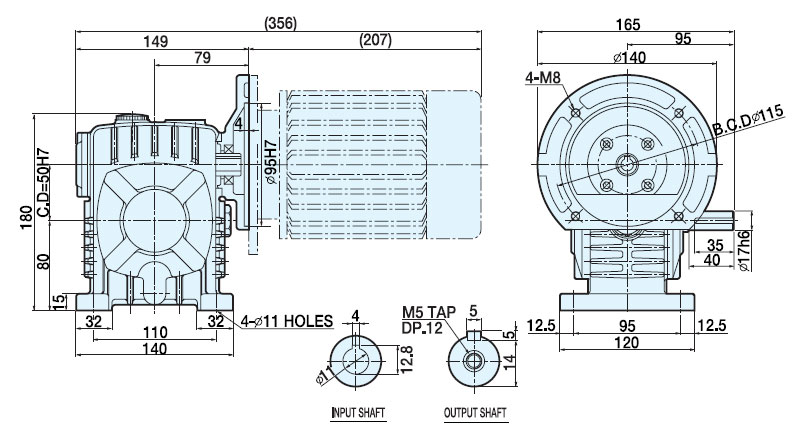

MAX21 WUM-50 Single Worm Reducer with Flange for Motor Attaching at the Upper

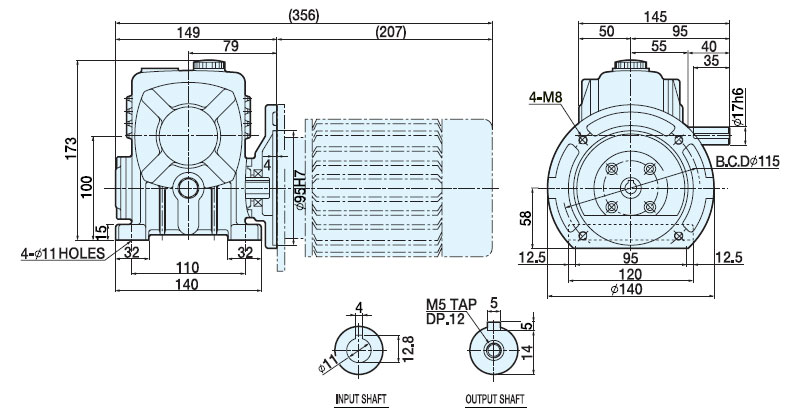

MAX21 WBM-50 Single Worm Reducer with Flange for Motor Attaching at the Lower

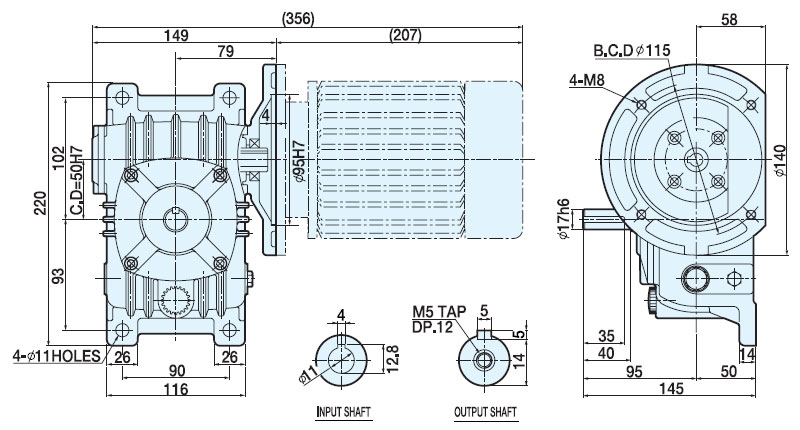

MAX21 WVM-50 Single Worm Reducer with Flange for Motor Attaching Vertically

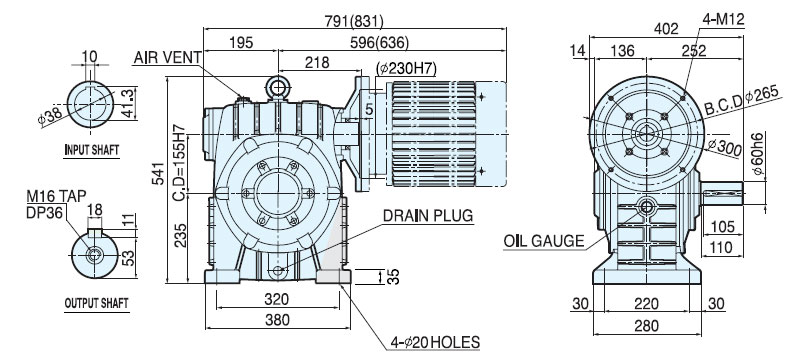

MAX21 WUM-155 Single Worm Reducer with Flange for Motor Attaching at the Upper

MAX21 WBM-155 Single Worm Reducer with Flange for Motor Attaching at the Lower

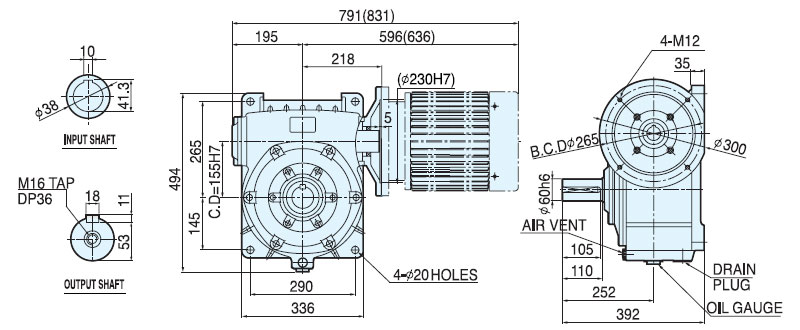

MAX21 WVM-155 Single Worm Reducer with Flange for Motor Attaching Vertically

MAX21 Single Worm Geared Motor

( Ratio 1/10 ~ 1/60 )

Single Worm
