MAX21 Double Worm Geared Motor - DWBM & DWVM series ( Ratio 1/100 ~ 1/3600 )

MAX21 Double

Worm Gear Reducer

- Small and mid-sized worm gear reducer

- Size : CD 50, 60, 70, 80, 100, 120, 135, 155, 175, 200, 225, 250, 300mm

- Reduction ratio : 1/100 ~ 1/3600

- Power Transmission : 0.2 ~ 20KW (1/4 ~ 27HP)

- Mounting : horizontal and vertical

- Various positioning and rotating direction of the shafts possible

- Flange fit for IEC standard motor attaching available (Up to size CD 155mm)

- Reducer with motor attached available

- Accumulated know-how and quality from the experience of over 40 years in this field

- Model code reference

DWB : Double worm reducer, Horizontal output shaft

DWV : Double worm reducer, Vertical output Shaft

MAX21 Double Worm Geared Motor

( Ratio 1/100 ~ 1/3600 )

Single Worm

MAX21 DWBM-70 Double Worm Reducer with Flange for Motor Attaching

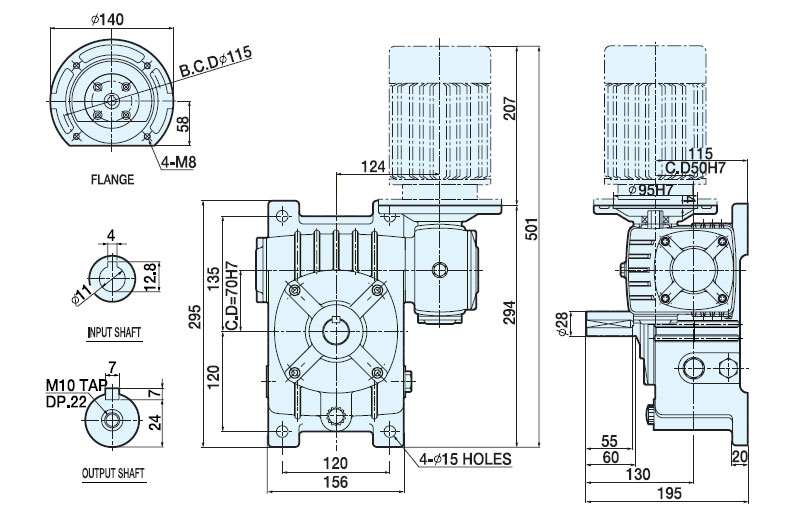

MAX21 DWVM-70 Double Worm Reducer with Flange for Motor Attaching Vertically

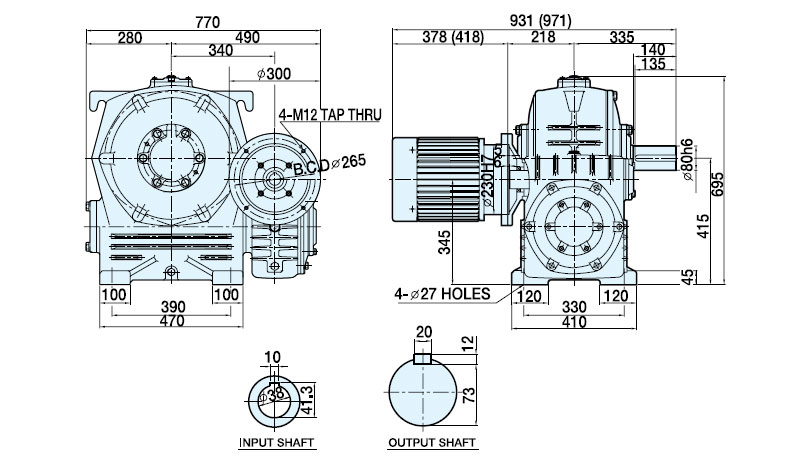

MAX21 DWBM-225 Double Worm Reducer with Flange for Motor Attaching

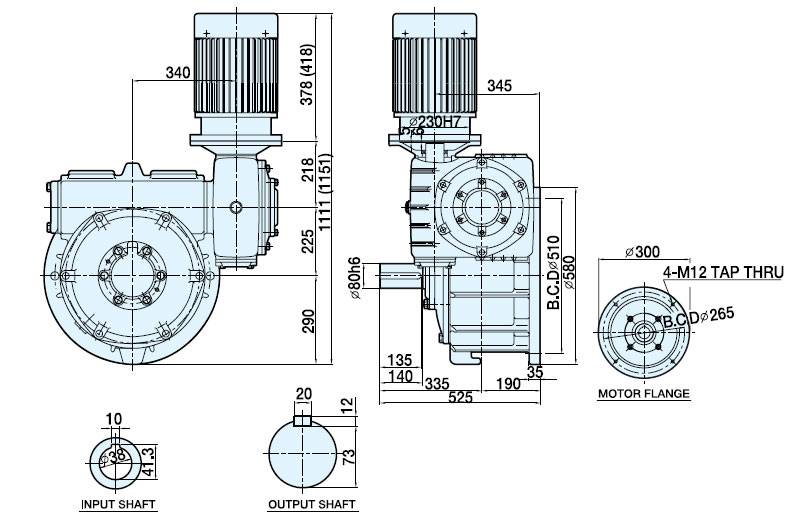

MAX21 DWVM-225 Double Worm Reducer with Flange for Motor Attaching Vertically

MAX21 Double Worm Geared Motor

( Ratio 1/100 ~ 1/3600 )

Single Worm
