CHR Current Transformers (HV, Cable type) - CTe Tech

For Indoor

Measuring & Relaying Application

Busbar or Cable Through type

Epoxy Molded Type

Frequency : 60 or 50Hz

Model		Rated Current		Max Voltage
Measuring Application	Relaying Application	Primary	Secondary	Max Voltage
CHR-1	CHR-1R	300 ~ 2500A	5 or 1A	7.2kV
CHR-2	CHR-2R	300 ~ 4000A	5 or 1A	7.2kV
CHR-3	CHR-3R	300 ~ 4000A	5 or 1A	7.2 ~ 17.5kV

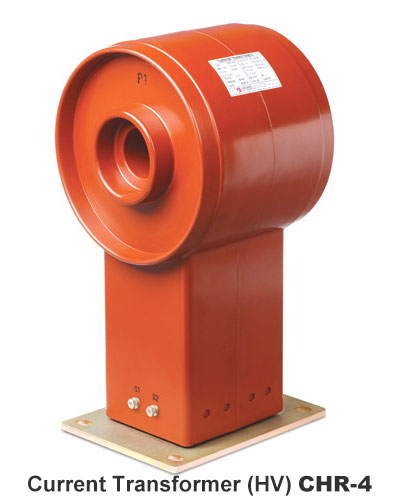

CHR-4	CHR-4R	300 ~ 5000A	5 or 1A	7.2 ~ 25.8kV
CHR-12	CHR-12R	300 ~ 1000A	5 or 1A	7.2kV
CHR-17	CHR-17R	300 ~ 1000A	5 or 1A	7.2 ~ 17.5kV
CHR-31	CHR-31R	300 ~ 4000A	5 or 1A	7.2 ~ 17.5kV
CHR-32	CHR-32R	300 ~ 4000A	5 or 1A	7.2 ~ 17.5kV

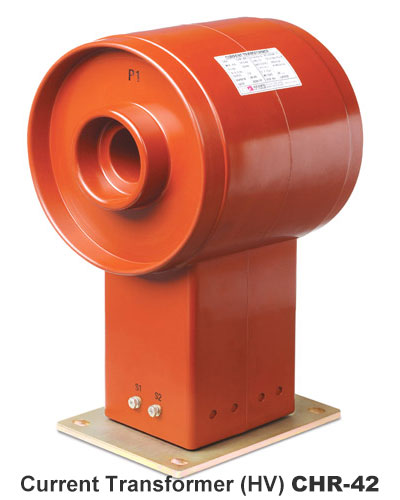

CHR-42	CHR-42R	300 ~ 5000A	5 or 1A	12 ~ 25.8kV
