WS Current Transformer (HV, Winding type) - CTe Tech

For Indoor
Measuring & Relaying Application

Winding type

Epoxy Molded Type
Frequency : 60 or 50Hz

Model

Rated Current

Max Voltage

Measuring Application

Relaying Application

Primary

Secondary

WS-62 WS-62R

5 ~ 300A

5 or 1A

7.2kV
WS-63 WS-63R

5 ~ 600A

5 or 1A

7.2~12kV

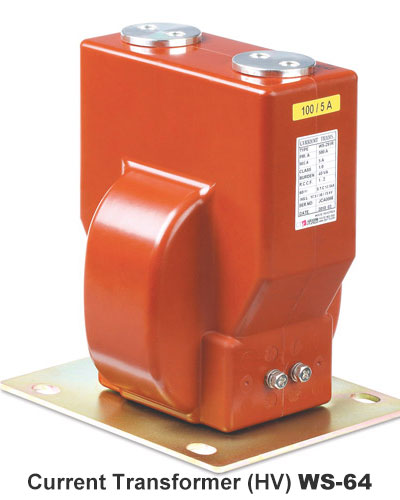

WS-64 WS-64R

5 ~ 1500A

5 or 1A

7.2~12kV
WS-65 WS-65R

5 ~ 1500A

5 or 1A

7.2~17.5kV
WD-121 WD-121R

5 ~ 2000A

5 or 1A

7.2~17.5kV
WD-122 WD-122R

5 ~ 3200A

5 or 1A

7.2~17.5kV
WD-122W  WD-122WR

5 ~ 3200A

5 or 1A

7.2~17.5kV
WD-123 WD-123R

5 ~ 3200A

5 or 1A

7.2~17.5kV
WD-123W WD-123WR

5 ~ 3200A

5 or 1A

7.2~17.5kV
WD-124 WD-124R

5 ~ 3200A

5 or 1A

7.2~17.5kV
WD-124W WD-124WR

5 ~ 3200A

5 or 1A

7.2~17.5kV
WD-125 WD-125R

5 ~ 3200A

5 or 1A

7.2~17.5kV
WD-125W WD-125WR

5 ~ 3200A

5 or 1A

7.2~17.5kV
WD-240 WD-240R

5 ~ 3200A

5 or 1A

7.2~24kV
WD-241 WD-241R

5 ~ 3200A

5 or 1A

7.2~24kV
WD-241W WD-241WR

5 ~ 3200A

5 or 1A

7.2~24kV
WD-242 WD-242R

5 ~ 3200A

5 or 1A

7.2~24kV
WD-242W WD-242WR

5 ~ 3200A

5 or 1A

7.2~24kV
WS-251 WS-251R

5 ~ 1500A

5 or 1A

7.2~24kV
WS-252 WS-252R

5 ~ 1500A

5 or 1A

7.2~24kV
WS-254 WS-254R

5 ~ 1500A

5 or 1A

7.2~24kV
WS-255S WS-255RS

5 ~ 3200A

5 or 1A

7.2~24kV
WS-255D WS-255RD

5 ~ 3200A

5 or 1A

7.2~24kV
WS-256 WS-256R

5 ~ 1500A

5 or 1A

7.2~24kV
WS-285 WS-285R

5 ~ 3200A

5 or 1A

7.2~24kV
WS-286 WS-286R

5 ~ 3200A

5 or 1A

7.2~24kV
WS-287 WS-287R

5 ~ 3200A

5 or 1A

7.2~24kV
WS-361 WS-361R

5 ~ 2000A

5 or 1A

24~36kV
WS-362 WS-362R

5 ~ 3200A

5 or 1A

24~36kV
WS-363 WS-363R

5 ~ 4000A

5 or 1A

7.2~36kV

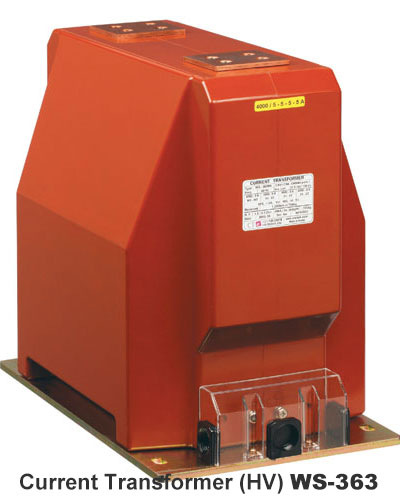

WS-363W WS-363WR

5 ~ 4000A

5 or 1A

7.2~36kV
WS-641 WS-641R

5 ~ 1500A

5 or 1A

7.2~12kV
WS-651 WS-651R

5 ~ 1500A

5 or 1A

7.2~17.5kV
