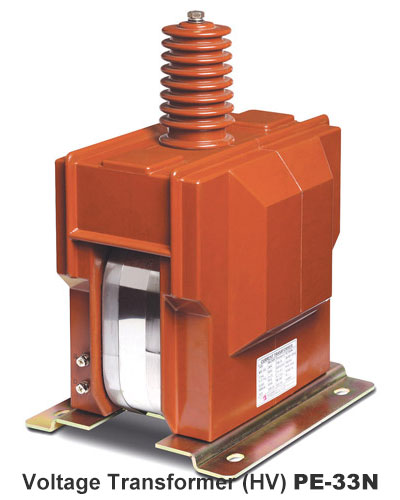

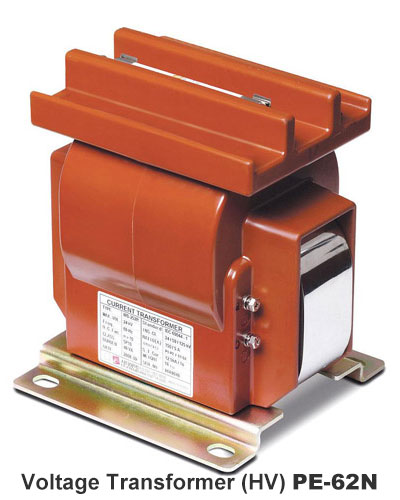

PE Voltage Transformer (HV)
- CTe Tech
|
|
|
| For Indoor |
| Over Voltage Factor : 1.2Vn Continuous |
| Epoxy Molded Type |
| Frequency : 60
or
50Hz |
|
|
Model |
Max
Voltage |
Phase |
Type
|
Over Voltage Factor |
Remarks
|
| PE-12 |
7.2~12kV |
Single |
Line to Line Voltage |
1.2Vn Continuous |
|
| PE-12N |
7.2~12kV |
Single |
Earthed Voltage |
1.2Vn Cont., 1.9Vn/30s |
|
| PE-12NT |
7.2~12kV |
Single |
Earthed Voltage |
1.2Vn Cont., 1.9Vn/30s |
Tertiary Voltage |
| PE-17F |
12~17.5kV |
Single |
Line to Line Voltage |
1.2Vn Continuous |
with Fuse |
| PE-17NF |
12~17.5kV |
Single |
Earthed Voltage |
1.2Vn Cont., 1.9Vn/30s |
with Fuse |
| PE-25N |
24kV |
Single |
Earthed Voltage |
1.2Vn Cont., 1.9Vn/30s |
|
| PE-26 |
24kV |
Single |
Line to Line Voltage |
1.2Vn Continuous |
|
| PE-26N |
24kV |
Single |
Earthed Voltage |
1.2Vn Cont., 1.9Vn/30s |
|
| PE-26NF |
24kV |
Single |
Earthed Voltage |
1.2Vn Cont., 1.9Vn/30s |
with Fuse |
| PE-27F |
17.5~24kV |
Single |
Line to Line Voltage |
1.2Vn Continuous |
with Fuse |
| PE-33H |
12~24kV |
Single |
Line to Line Voltage |
1.2Vn Continuous |
|
| PE-33HNF |
12~24kV |
Single |
Earthed Voltage |
1.2Vn Cont., 1.9Vn/30s |
with Fuse |
| PE-33L |
3.6~17.5kV |
Single |
Line to Line Voltage |
1.2Vn Continuous |
|
| PE-33LNF |
3.6~17.5kV |
Single |
Earthed Voltage |
1.2Vn Cont., 1.9Vn/30s |
with Fuse |
| PE-33N |
36kV |
Single |
Earthed Voltage |
1.2Vn Cont., 1.9Vn/30s |
|
| PE-61 |
3.6~7.2kV |
Single |
Line to Line Voltage |
1.2Vn Continuous |
|
| PE-61N |
3.6~7.2kV |
Single |
Earthed Voltage |
1.2Vn Cont., 1.9Vn/30s |
|
| PE-61NT |
3.6~7.2kV |
Single |
Earthed Voltage |
1.2Vn Cont., 1.9Vn/30s |
Tertiary Voltage |
| PE-62 |
3.6~7.2kV |
Single |
Line to Line Voltage |
1.2Vn Continuous |
|
| PE-62N |
3.6~7.2kV |
Single |
Earthed Voltage |
1.2Vn Cont., 1.9Vn/30s |
|
| PE-62NT |
3.6~7.2kV |
Single |
Earthed Voltage |
1.2Vn Cont., 1.9Vn/30s |
Tertiary Voltage |
| PE-63 |
3.6~7.2kV |
Single |
Line to Line Voltage |
1.2Vn Continuous |
|
| PE-63N |
3.6~7.2kV |
Single |
Earthed Voltage |
1.2Vn Cont., 1.9Vn/30s |
|
| PE-63NT |
3.6~7.2kV |
Single |
Earthed Voltage |
1.2Vn Cont., 1.9Vn/30s |
Tertiary Voltage |
| 3PE-61NTY |
7.2kV |
Three (3P4W) |
Earthed Voltage |
1.2Vn Cont., 1.9Vn/30s |
|
| 3PE-61NY |
7.2kV |
Three (3P4W) |
Earthed Voltage |
1.2Vn Cont., 1.9Vn/30s |
|
| 3PE-61V |
7.2kV |
Three (3P3W) |
Line to Line Voltage |
1.2Vn Continuous |
|
| 3PE-62NTY |
7.2~12kV |
Three (3P4W) |
Earthed Voltage |
1.2Vn Cont., 1.9Vn/30s |
|
| 3PE-62NY |
7.2~12kV |
Three (3P4W) |
Earthed Voltage |
1.2Vn Cont., 1.9Vn/30s |
|
| 3PE-62V |
7.2~12kV |
Three (3P3W) |
Line to Line Voltage |
1.2Vn Continuous |
|
| CPE-25N |
24kV |
Single |
Earthed Voltage |
1.2Vn Cont., 1.9Vn/30s |
for
Cable type |
| GPE-12N |
3.6~12kV |
Single |
Earthed Voltage |
1.2Vn Cont., 1.9Vn/30s |
|
| GPE-12NF |
3.6~12kV |
Single |
Earthed Voltage |
1.2Vn Cont., 1.9Vn/30s |
with Fuse |
| GPE-12NTF |
3.6~12kV |
Single |
Earthed Voltage |
1.2Vn Cont., 1.9Vn/30s |
with Fuse |
| GPE-24N |
17.5~24kV |
Single |
Earthed Voltage |
1.2Vn Cont., 1.9Vn/30s |
|
| GPE-24NF |
17.5~24kV |
Single |
Earthed Voltage |
1.2Vn Cont., 1.9Vn/30s |
with Fuse |
| GPE-24NTF |
17.5~24kV |
Single |
Earthed Voltage |
1.2Vn Cont., 1.9Vn/30s |
with Fuse |
|
|
|
