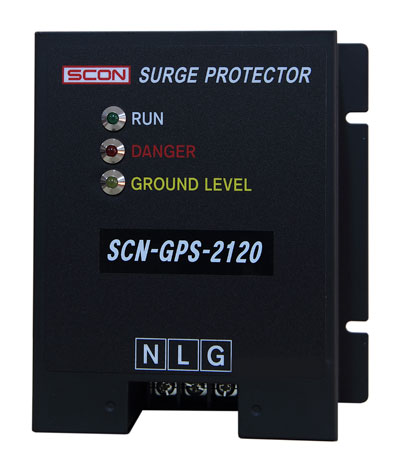

SCN-GPS-2120

    1-phase Power Lightning / Surge Protector 120kA

Model

GPS-2120-1

(110V)

GPS-2120-2

(220V)

Max Continuos

Rated Voltage

180V AC (RMS)

320V AC (RMS)

Maximum Surge

Voltage

(L-L) : 310V

(L-G) : 310V

(L-L) : 845V

(L-G) : 845V

Nominal Voltage

100/110/120V AC

200/220/240V AC

Response Time

< 25 nano seconds

Nominal Impulse

Discharge Current

120kA / mode (8 x 20 uS)

240kA / Phase (8 x 20 uS)

Voltage Drop

less than 2V (50~60Hz)

Insulation Resistance

between Lines

1000㏁ or more

Grade

Class II

Protecting Type

Parallel

Ambient Temperature

-40℃ ~ 80℃

Case Material & Color

Steel / Black

Elements

UL Approved Parts

Featured Function

Automatic Return after Surge Inflow

Mounting

Panel Mounting

Dimensions

150(W) x 160(H) x 70(D) mm
