Type

Range

Symbol

A

mA

4 ~ 20 mA

20MA

2-wire

24V/4~20mA DC

20MA

B

B(PR)

0 ~ 1800°C

TC- B

R(RR)

0 ~ 1750°C

TC- R

S(PR)

0 ~ 1750°C

TC- S

K(CA)

-250 ~ 1350°C

TC- K

E(CRC)

-199.9 ~ 700.0°C

TC- E

J(IC)

-199.9 ~ 800.0°C

TC- J

T(CC)

-199.9 ~ 400.0°C

TC- T

N(NN)

-250 ~ 1350°C

TC- N

mV

-100 ~ 100mV DC

MV

1 Volt

-1.0 ~ 1V DC

1 V

10 Volt

-10 ~ 10V DC

10 V

C

DPt100Ω

-199.9 ~ 800.0

D-PT

JPt100Ω

-199.9 ~ 500.0

J-PT

PMC

0~100kΩ

pPMC

Ordering Code

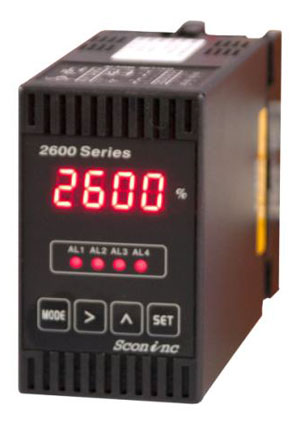

SCONI-2600-A1Y

A

Input

Various Input Signals

Ex. DC 4 ~ 20mA

(also with 24V Power)

or DC 0 ~ 20 mA

1

Output

2-alarm (SPDT)

 AL-1 (HIGH), AL-2 (LOW)

Y

Power Supply

DC 24V

Ordering Code

SCONI-2600-B1Y

B

Input

Various Thermocouples

1

Output

2-alarm (SPDT)

Y

Power Supply

DC 24V

Ordering Code

SCONI-2600-B5X

B

Input

Various Thermocouples

Ex. "k" type

5

Output

1 Alarm & DC 4 ~ 20mA

X

Power Supply

AC 85~264V (50~60Hz)

Ordering Code

SCN-260-A8X

A

Input

Various Input Signals

Ex. DC 4 ~ 20mA

(also with 24V Power)

8

Output

2-alarm & DC 4 ~ 20mA

X

Power Supply

AC 85~264V (50~60Hz)

A

mA, 2-wire, SQT

B

mV, V, T/C

C

RTD, PMC

1

2 Alarm (SPDT)

2

4 Alarm (SPST)

3

1 Alarm & DC 0 ~ 10V

4

1 Alarm & DC 1 ~ 5V

5

1 Alarm & DC 4 ~ 20mA

6

2 Alarm & DC 0 ~ 10V

7

2 Alarm & DC 1 ~ 5V

8

2 Alarm & DC 4 ~ 20mA

R

Other

X

AC 85~264V (50~60Hz)

Y

DC 24V (Option)
