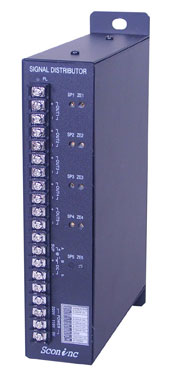

Input
Signals
|
D |
DC Signal |
|
I |
2 Wire |
|
R |
RTD |
|
T |
Thermocouple |
|
P |
Potentiometer |
Input
Specifications
Input |
Specification |
DSC |
DC 1~5V : 1kΩ or more |
DC 4~20mA : 250Ω |
IPD |
Supply : DC 24~28V |
PMC |
Excitation : 2.5V DC |
RTD |
Sensor supply : DC 2mA |
Power
Supply
|
X |
AC 110V/220V |
|
Y |
DC 24V (Option) |
|
Output
Signals
|
3 |
3 Point
(1-In to 3-Out Distribution) |
|
4 |
4 Point
(1-In to 4-Out Distribution) |
|
5 |
5 Point
(1-In to 5-Out Distribution) |
|
7 |
2 Loop
(2-In/Out Channel) |
|
8 |
3 Loop
(3-In/Out Channel) |
|
R |
Other |
Output
Specifications
Output |
Load Resistance |
Impedance |
0 ~ 100mV |
1kΩ or more |
100Ω or less |
0 ~ 5V DC |
2kΩ or more |
0.1Ω or less |
0 ~ 10V DC |
4kΩ or more |
0 ~ 1mA DC |
0 ~ 15kΩ |
5MΩ or more |
4 ~ 20mA DC |
0 ~ 750Ω |
Ordering
Example
|
Ordering
Code |
SCONI-DSTD-4X
|
|
D
|
Input
|
DC Signal |
|
4 |
Output
|
4-point
Splitter |
|
X |
Power
Supply
|
AC 110V/220V |
|
Ordering
Code |
SCONI-DSTD-3CH
|
|
D
|
DC Signal |
|
3CH |
Input
& Output 3-channel
|
|
