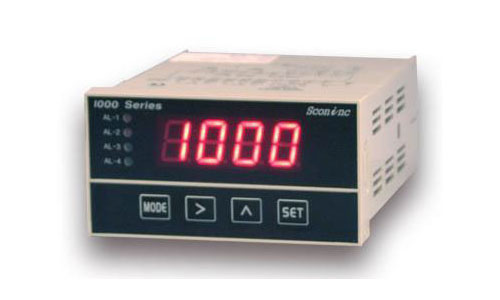

Input
Signals
|
Multi |
T/C, RTD |
|
mV, Volt, mA |
Input
Signal Type
|
Type |
Range |
Symbol |
|
T/C |
B(PR) |
0 ~ 1800 |
TC- B |
|
R(RR) |
0 ~ 1750 |
TC- R |
|
S(PR) |
0 ~ 1750 |
TC- S |
|
K(CA) |
-250 ~ 1350 |
TC- K |
|
E(CRC) |
-199.9 ~ 700.0 |
TC- E |
|
J(IC) |
-199.9 ~ 800.0 |
TC- J |
|
T(CC) |
-199.9 ~ 400.0 |
TC- T |
|
N(NN) |
-250 ~ 1350 |
TC- N |
|
RTD |
DPt100Ω |
-199.9 ~ 800.0 |
D-PT |
|
JPt100Ω |
-199.9 ~ 500.0 |
J-PT |
|
Volt |
mV |
-100 ~ 100mV DC |
MV |
|
1 Volt |
-1.0 ~ 1V DC |
1 V |
|
10 Volt |
-10 ~ 10V DC |
10 V |
|
mA |
mA |
4 ~ 20 mA |
20MA |
|
2wire |
24V/4~20mA DC |
20MA |
|
Alarms
|
1 |
2 Alarm (SPDT) |
|
2 |
4 Alarm (SPST) |
Output
Signals 1
|
1 |
DC 0 ~ 5V |
|
2 |
DC 0 ~ 10V |
|
3 |
DC 1 ~ 5V |
|
4 |
DC 0 ~ 20mA |
|
5 |
DC 4 ~ 20mA |
|
R |
Other |
Output
Signals 2
|
1 |
DC 0 ~ 5V |
|
2 |
DC 0 ~ 10V |
|
5 |
DC 4 ~ 20mA |
|
7 |
RS 485 (ModBus) |
|
R |
Other |
Power
Supply
|
X |
AC 85 ~ 264V (50~60Hz) |
|
Y |
DC 24V (Option) |
|
