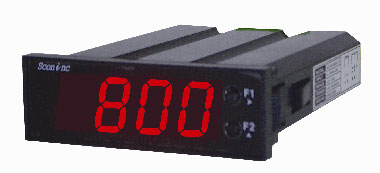

Mosaic Signal Indicator SCONI-800 ( SCN-800 )

SCONI 800 series is graphic board indicator which contains microprocessor. It displays displacement of various input signal digitally as model. Also, it is very convenient to use for range and function can be changed by key switch in front of panel arbitrarily.

Power Supply

AC/DC 12V ± 10%

DC 24V ± 10%(Isolation)

Power Consumption

Less than 2VA

Tolerance

± 0.1 % of FS.

Display

4 Digit / 5 Digit / 6 Digit

LED

0.57 inch or 0.4 inch / 7-Segment

Isolation

Input/Output DC 500V 100㏁ or more

Isolation Strength

Input/Output AC 1500V/min(DC 24V)

Set up Method

Program method by key switch

Operating Temperature

0 ~ 55℃

Operating Humidity

20 ~ 80 % RH

Weight

Approx 200g

Material/Colo

ABS Resin / Black

Dimension

W 75 x H 25 x D 85 (mm)

Mounting

Panel Flush

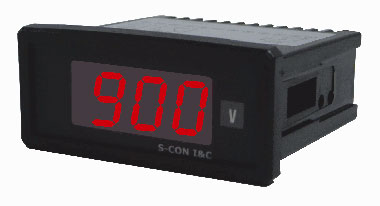

Small Signal Indicator SCONI-900 ( SCN-900 )

Small size indicator which displays displacement of input signal such as AC/DC current and voltage digitally. Also, it is very convenient to use for scale change can be set up by key board.

Power Supply

AC 110V/220V(50/60Hz) ± 10%

DC 24V ± 10%

Power Consumption

Less than 4VA

Tolerance

± 0.2 % of FS.

Display

4 Digit

LED

0.4 inch 7-Segment(red)

Isolation

Input/Output DC 500V 100㏁ or more

Dielectric Strength

Input/Power, AC 1500V/min

Set up method

Program method by key switch

Operating Temperature

0 ~ 55 ℃

Operating Humidity

20 ~ 80 % RH

Weight

Approx 200gr

Material/Colo

ABS Resin / Block

Dimension

W 76 x H 34 x D 76 (mm)

Cot Size

W 70.5 x H 28.5 (mm)

Mounting

Panel Flush
