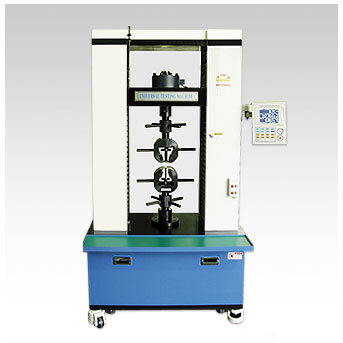

| Large
Size Universal Testing Machines
|
|
|
|
|
|
|
Display
Unit
|
Remote
Control
Switch
|
|
|
|
|
|
|
|
Extensometer
|
Specimen
Fixing
Jig
|
|
|
|

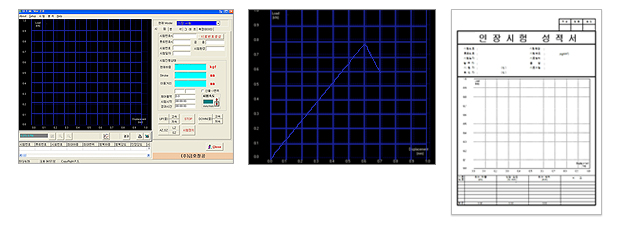

Software
& Report Printout
|
|
|
|
|
| Features
|
|
-
Multi purpose testing
machine
-
Test for tensile,
compressive and
bending strength
can be performed.
-
Metallic, nonmetallic,
fabric, rubber,
plastic, adhesive
and many other materials
can be tested.
-
Made by AC servo
motor, precise control
and low noise is
realized.
-
PC control and report
printout is possible.
|
|
| Specifications
|
|
Model |
NA-05M |
NA-10M |
NA-20M |
|
Max. Capacity |
5Ton |
10Ton |
20Ton |
|
Loading System |
Computerized Numerical Control System
Operated |
|
Power Source |
AC 220V, 3-phase, 50/60Hz |
|
AC Servo Motor Capacity |
1.5KW |
1.5KW |
2.2KW |
|
Cross-Head |
1~500mm/min |
|
Accuracy |
Testing Load Accuracy - Within ± 0.4%
Testing
Load Accuracy - Within ± 0.5% |
|
Cross-Head
Moving System |
Fast ¡ã ¡å, Slow ¡ã ¡å (use Calibration Mode) - Any
time after P.C
on (Test, Stop, Original) Key - After U.T.M Program |
|
Safety Function for Over-loading |
Emergency S/W, N.F.B, Software Protect of 95% Full Scale |
|
Stroke Limiter |
4 Point Limiter |
|
Sample Break Detection |
1. Auto 2. User Defined |
|
Sensor |
Load Detector - Load cell
/ Stroke Detector -
Encoder (1000 pulse) |
|
Reducer |
30 : 1 |
|
Screw |
Precision Ball Screw |
|
Column |
2 |
2 |
2 |
|
Column to Column (mm) |
440 |
500 |
500 |
|
Test Mode |
Tensile, Compress, Tear, Cycle, Bending, 90¢ª Peel,
Relaxation Test |
|
Jaws |
Flat Jaws 1 set |
|
AC Servo Motor & Drive |
Mitsubishi |
|
Accuracy of Load cell |
Within ± 0.03% (F.S), Maker - A & D,
Korea |
|
Control Board |
NA-2012H |
|
Option |
Jig, Program, Computer, Extensometer |
|
Dimensions
(W x D x H, mm) |
900
x 500 x 1900 |
1000
x 550 x 2100 |
1000
x 600 x 2100 |
|
Weight
(Kg) |
800 |
950 |
1100 |
|
|
|
