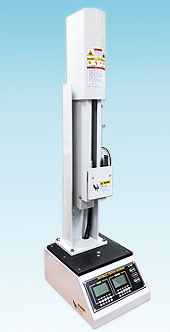

| Small
Size Universal Testing Machines
|
|
|
|
|
|
Display
Unit
|
|
|
|
|
|
|
Digital
Multiflex
Input
&
Output
Indicator
|
Digital
Displacement
&
Speed
Controller
|
|
|
|
|
| Features
|
|
-
Multi purpose testing
machine
-
Test for tensile,
compressive and
bending strength
can be performed.
-
Metallic, nonmetallic,
fabric, rubber,
plastic, adhesive
and many other materials
can be tested.
-
Made by AC servo
motor, precise control
and low noise is
realized.
-
PC control and report
printout is possible.
|
|
| Specifications
|
|
Model |
NA-50K |
NA-100K |
NA-250K |
|
Max. Capacity |
50Kg |
100Kg |
250Kg |
|
Loading System |
Computerized Numerical Control System
Operated |
|
Power Source |
AC 220V, 1-phase, 50/60Hz |
|
AC Servo Motor Capacity |
200W |
200W |
400W |
|
Cross-Head |
1~400mm/min |
|
Accuracy |
Testing Load Accuracy - Within ± 0.4%
Testing
Load Accuracy - Within ± 0.5% |
|
Cross-Head
Moving System |
Fast ¡ã ¡å, Slow ¡ã ¡å (use Calibration Mode) - Any
time after P.C
on (Test, Stop, Original) Key - After U.T.M Program |
|
Safety Function for Over-loading |
Emergency S/W, N.F.B, Software Protect of 95% Full Scale |
|
Stroke Limiter |
2 Point Limiter |
|
Sample Break Detection |
1. Auto
2. User Defined |
|
Sensor |
Load Detector - Load cell
/ Stroke Detector -
Encoder (1000 pulse) |
|
Reducer |
30 : 1 |
|
Screw |
Precision TM Screw |
|
Column |
1 |
|
Test Mode |
Tensile, Compress, Tear, Cycle, Bending, 90¢ª Peel,
Relaxation Test |
|
Jaws |
Flat Jaws 1 set |
|
BLBC Motor & Drive |
Korean
Origin |
|
Accuracy of Load cell |
Within ± 0.03% (F.S), Maker - A & D,
Korea |
|
Control Board |
NA-9000S |
|
Function |
Peak
& Hold, Repeat
Testing (Auto &
Manual
Return), Emergency |
|
Option |
Jig, Program, Computer, Extensometer |
|
Dimensions
(W x D x H, mm) |
280
x 380 x 1100 |
280
x 380 x 1100 |
280
x 380 x 1100 |
|
Weight
(Kg) |
40 |
45 |
50 |
|
|
|
